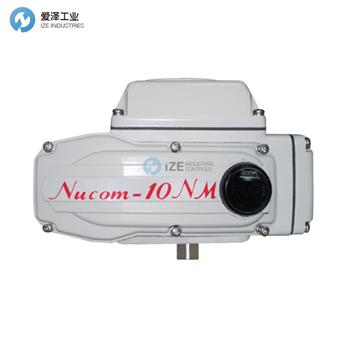

KOEI執行器NUCOM-10NM系列技術參數
MODEL | Nucom-10NM |
RATED POWER | AC100·110·115·120V±10% (50/60 Hz) |
INPUT SIGNAL | 4~20mA·DC (Standard Specification) |
OUTPUT TORQUE | 196N·m (20kgf·m) |
OPERATION SPEED | 15sec(50HZ) , 12.5sec(60HZ) |
TRAVEL ANGLE | 0~90o |
RESOLUTION | Over 1/250 |
DEAD ZONE | Max. 0.5% F.S. |
LINEARITY | Max. 0.5% F.S. |
ACTION MODE D | irect or reverse action selectable |
MODE WHEN SIGNAL “OFF” | CLOSE/STOP/OPEN : selectable |
PROTECTION | OPEN/CLOSE limit switches |
AMBIENT TEMPERATURE | Ambient temperature within: -25~55oC |
RATED CURRENT | AC100V 1.8A |
MOTOR | 90W Reversible |
INSULATION GRADE | E Class |
RATED OPERATION TIME | Continuous |
POSITION DETECTOR | Potentiometer (Backlash revision type) |
OUTPUT SIGNAL | 4~20mA·DC (Standard spec. Maximum load resistance 500Ω) |
INSULATION RESISTANCE | Between power terminal – case : 500V·DC / 100M? |
WITHSTAND VOLTAGE | Between power terminal – case : 1500V·AC / 1 minute |
SERVO CONTROL UNITS | Resin molded semi-conductors |
MANUAL OPERATION | Detachable crank handle (Standard accessory) |
WIRE INLET | G1/2×2 (Water-sealed conduit) |
ENCLOSURE PROTECTION | NEMA-4X (IP-66) |
EXPLOSION PROOF | Non explosion-proof |
MOUNTING ANGLE | 360o all directions |
BODY MATERIAL | Diecast aluminum |
COATING | Munsel N-6 |
WEIGHT | 8.7kg |
KOEI執行器Nucom系列介紹
調制執行器使用來自計算機的 4~20mA DC（或 1~5V DC）直接信號進行操作。
1/250的精度（控制分辨率）遠高于傳統氣動系統。
特征
- 采用原裝伺服控制包，控制分辨率大于1/250。
- 采用蝸桿傳動和堅固的鋁壓鑄體的緊湊型設計。
- 簡單的方向模式設置（直接或反向）。
- 信號中斷時簡單的模式選擇（打開、關閉或停止）。
- 多重保護（電機熱保護器等）。
- 防水：NEMA-4X（達到IP-66）。
The modulated actuators are operated with 4~20mA DC(or 1~5V DC) direct signals from a computer.
The precision (control resolution) of 1/250 is far higher than those of conventional pneumatic systems.
FEATURES
- High control resolution of more than 1/250 with the original servo control pack.
- Compact design with worm drive and robust aluminum die cast body.
- Easy direction mode setting (Direct or reverse).
- Easy mode selection (open, close or stop) during signal interruption.
- Plural protections (thermal motor protector etc.).
- Water protection: NEMA-4X (to IP-66).
KOEI執行器Nucom系列其他常用型號：
KOEI NUCOM-10NM-20KG AC220V
KOEI Nucom-10NM
KOEI Nucom-10NL
KOEI Nucom-10NL-100
KOEI Nucom-10NL-150
KOEI Nucom-10NL-200
KOEI ELECTRONIC CONTROL ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
