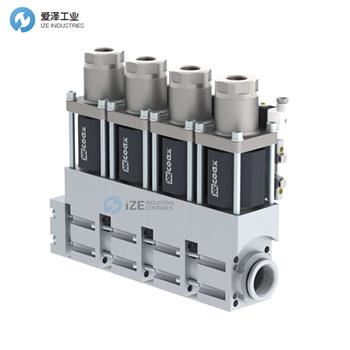

COAX閥VMK25系列技術參數
ports | 1 - 1 1/2 NPT threads |
function | NC / NO |
pressure range | 0-240 / 0-600 / 0-960 / 0-1500 psi |
CV value | 15.37 GPM (>64 bar = 2,1 GPM) |
media | gaseous |
switching cycles | 200 1/min |
switching time | opening 50-3000 ms |
media temperature | +140 °F direct mounted pilot valve |
ambient temperature | +122 °F direct mounted pilot valve |
weight | 6.7 kg |
nominal voltage | Un 24 V DC |
protection | IP65 (P54) DIN 40 050 |
energized duty rating | ED 100% |
COAX閥VMK25系列其他常用型號：
COAX 5-VMK25-1-114-64-02400.1 KNA 533574
COAX 5-VMK25-3-1-16-02400-NC KNA 538574
COAX 5-VMK25-1-1-40-02400-NC.1 70855
COAX 5-VMK25-1-114-40-02400.3/547362
COAX 5-VMK25NC-112-16/24VDC 522651
COAX 5-VMK25-1-112-40-02400.4 KNA 527501
COAX 5-VMK25-1-112-40-02400 KNA 526340
COAX MANIFOLDS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于COAX閥5-VMK25-1-112-40-02400 KNA 526340的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for COAX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
COAX閥VMK25系列5-VMK25-1-112-40-02400 KNA 526340技術參數
