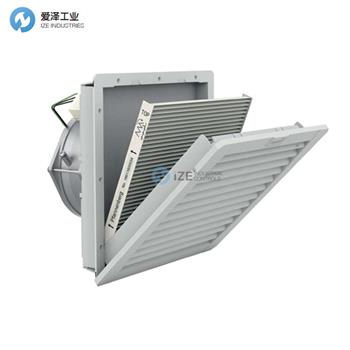

PFANNENBERG風扇PF 43.000 11643101055是PF3000 11030102000的停產升級型號
PFANNENBERG風扇PF 43.000 11643101055技術參數
PRODUCT | PF 43.000 |
ARTICLE NO. IP 54 | 11643101055 |
DATA | |
Rated voltage ±10 % | AC 50 | 60 Hz 230V |
Unimpeded airflow | IP 54 223 | 247 m3/h |
Airflow rate in comb. with exhaust filter | IP 54 201 | 223 m3/h |
Power consumption | 45 | 39 W |
Current consumption | 0.31 | 0.25 A |
Noise level according to EN ISO 3741 | 53 dB (A) |
Weight | 1.67 kg |
Type of connection | spring-type terminal |
Fuse | 6 A |
System of protection according to EN 60529 / UL 50 | IP 54 NEMA type 12 - standard filter |
Filtration efficiency | IP 54 88% |
Filter mat quality class according to EN 779 | IP 54 G 4 |
Duty cycle | 1 |
Bearing type | ball bearing |
Service life L10 (+ 40 °C)1 | 80000 h |
Temperature range | –40 … +55 °C | –40 ... +131 °F |
Design (housing and protection against accidental contact) | IP 54 made of injection-moulded thermoplastic, self-extinguishing, UL 94 VO |
Colour | RAL 7035 | different colours available on request |
PFANNENBERG風扇PF 43.000系列介紹
安裝尺寸 4，氣流速率高達 265 m3/h
2 個性能等級，切出兼容
防護等級 IP 54 和 IP 55，NEMA 類型 12
UR 和 UL 認證
抗紫外線（IP 55 版本，RAL 7035）
開孔與第 3 代的安裝尺寸 4 兼容
也有黑色
排氣過濾器采用 24 件包裝，可加快組裝速度
installation size 4, airflow rate up to 265 m3/h
2 performance classes, cut-out compatible
degrees of protection IP 54 and IP 55, NEMA type 12
UR and UL approval
UV resistance (IP 55 version, RAL 7035)
cut-out compatible with installation size 4 from the 3rd Generation
also available in black
exhaust filter available in 24 piece packaging for faster assembly
PFANNENBERG風扇PF 43.000系列其他常用型號：
PFANNENBERG PF 43.000 11643021055
PFANNENBERG PF 43.000 11643101055
PFANNENBERG PF 43.000 11643151055
PFANNENBERG PF 43.000 11643801055
PFANNENBERG PF 43.000 11643701055
PFANNENBERG PF 43.000 11643023055
PFANNENBERG PF 43.000 11643103055
PFANNENBERG PF 43.000 11643153055
PFANNENBERG PF 43.000 11643803055
PFANNENBERG PF 43.000 11643703055
PFANNENBERG PF3000 11030102000
PFANNENBERG Filterfan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PFANNENBERG風扇PF 43.000 11643101055的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PFANNENBERG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
PFANNENBERG風扇PF 43.000 11643101055技術參數及介紹
