AERZEN風機GLb 15.11 HV技術參數
Model | GLb 15.11 HV |
theor. intake volume flow Sth when operating at 50 Hz / 60 Hz [ m3/h ] | 7500 / 9000 |
max. allowable differential pressure based on motor rating [ mbar ] | 80/53 |
Oil fill quantity for GLa/b [ litre ] | 5,4 |
Motor rating at 50 Hz / 60 Hz [ kW ] | 18,5 |
Motor size | 160 L |
Speed at 50 Hz / 60 Hz [ rpm ] | 3000 / 3600 |
Supply voltage at 50 Hz / 60 Hz [ V ] | 400/690 / 460 |

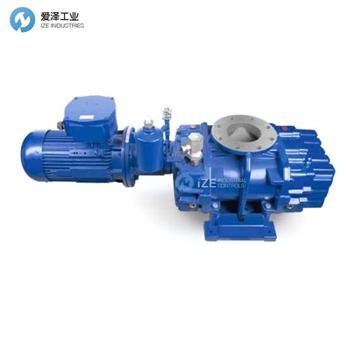

AERZEN風機HV系列介紹
設計和構造 AERZEN 真空鼓風機在外殼法蘭處配有氟橡膠 (FKM) O 形圈密封件。 鼓風機級的其他重要優點是真空密封性和空氣冷卻。 潤滑油采用飛濺潤滑方式供給。 潤滑劑可以是礦物油，也可以是PFPE油，主要用于輸送氧氣。 HV系列在輸送室和軸承室之間裝有特殊的拋油環-活塞環-迷宮式密封。 此外，還安裝了一個帶有冷凝水通道的大尺寸中性室。 此外，中性室可以用密封氣體吹掃，以達到增強的密封效果。 驅動軸的密封由帶油室的雙徑向密封環 (FKM) 保證。 鼓風機通過與電機直接耦合驅動。 驅動單元由帶孔板蓋的鑄造連接件、撓性聯軸器和帶法蘭的 B5 電機組成，根據 IEC 標準配備，另外還配有 3 個 PTC 電阻器。 作為標準配置，IE 3 電機用于實現最高能效。
? 最大的真空鼓風機系列，具有 19 種尺寸和 180 m3/h 至 97,000 m3/h 的體積流量
? 符合 94/9/EG 的 ATEX 認證，甚至適用于 0 區（內部）
? IE 3 電機節能
? 由于體積流量的精細結構步驟，可以輕松為您選擇合適的鼓風機
? 由于高機械負載能力（級高達 200 mbar - 在驅動的情況下，取決于所選電機額定值高達 140 mbar）抽空時間大大減少
? 通過各種可能的修改來適應特殊應用
? 垂直和水平安裝位置
? 可變流向（甚至雙側高達 2,800 m3/h）
Design and construction AERZEN vacuum blowers are provided with fluoro rubber (FKM) O-ring seals at the casing flanges. Further important advantages of the blower stage are vacuum tightness and air cooling. Lubrication oil is supplied by splash lubrication. The lubricant can be mineral oil, as well as PFPE oil, which is mostly used for conveying oxygen. The HV series is equipped with a special oil slinger-piston ring-labyrinth seal between the conveying chamber and the bearing chambers. Additionally, an amply dimensioned neutral chamber with condensate channels is installed. In addition, the neutral chamber can be purged with seal gas, in order to achieve an increased sealing effect. The sealing of the drive shaft is guaranteed by double radial seal rings (FKM) with an oil chamber. The blower is driven by direct coupling with motor. The driving unit consists of a cast connecting piece with perforated plate cover, flexible coupling and flanged B5-motor, equipped as per IEC standard and additionally with 3 PTC resistors. As standard, IE 3 motors are used for maximum energy efficiency.
? Largest vacuum blower series with 19 sizes and volume flows of 180 m3/h up to 97,000 m3/h
? ATEX certification as per 94/9/EG even for zone 0 (internal)
? Energy-saving thanks to IE 3 motors
? Easily select the right blower for you thanks to fine-structured steps of volume flows
? Due to high mechanical loading capacity (stage up to 200 mbar - in case of drive, depending on selected motor rating up to 140 mbar) considerable reduction of pumping-down times
? Variable adaptation to special applications through a wide variety of possible modifications
? Vertical and horizontal installation position
? Variable direction of flow (up to 2,800 m3/h even both-sided)

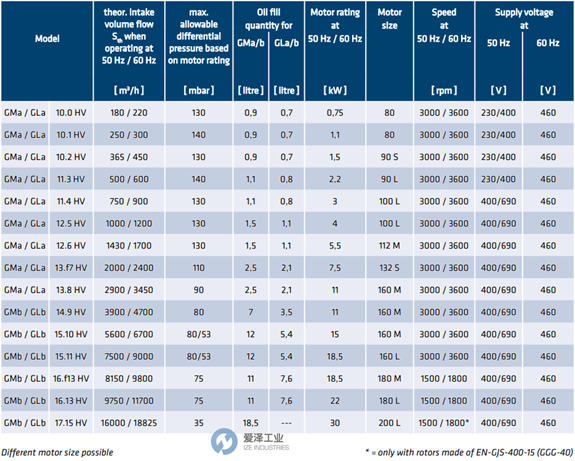

AERZEN風機HV系列選型
AERZEN風機HV系列其他常用型號：
AERZEN GLa 10.0 HV
AERZEN GLa 10.1 HV
AERZEN GLa 10.2 HV
AERZEN GLa 11.3 HV
AERZEN GLa 11.4 HV
AERZEN GLa 12.5 HV
AERZEN GLa 12.6 HV
AERZEN GLa 13.f7 HV
AERZEN GLa 13.8 HV
AERZEN GLb 14.9 HV
AERZEN GLb 15.10 HV
AERZEN GLb 15.11 HV
AERZEN GLb 16.f13 HV
AERZEN GLb 16.13 HV
AERZEN GLb 17.15 HV
