PORTESCAP電機23GST2R82 216P.1技術參數
Electrical Data | |
Nominal Voltage | 12 Volt |
No-Load Speed | 8,690 rpm |
No-L oad Current | 90 mA |
Terminal Resistance | 2.0 Ω |
Output Power | 17.2 W |
Stall Torque | 80 (11.33) mNm (oz-in) |
Efficiency | 0.77 |
Max Continuous Speed | 10,000 rpm |
Max Continuous Torque | 21 (3.12) mNm (oz-in) |
Max Continuous Current | 1.70 A |
Back- EMF Constant | 1.36 mV/rpm |
Torque Constant | 13.00 mNm/A |
Motor Regulation | 12.0 103/Nms |
Friction Torque | 1.17 (0.17) mNm (oz-in) |
Rotor Inductance | 0.08 mH |
Mechanical Time Constant | 5.6 ms |
Rotor Inertia | 4.70 g-cm2 |
General Data | |
Thermal Resistance (rotor/body) | 7/16 °C/W |
Thermal Time Constant (rotor/stator) | 12/460 S |
Operating Temperature Range: | motor -30°C to 85°C(-22°F to 185°F) |
Shaft Load Max.:(5 mm. from bearing) | With ball bearings |
Shaft Play: | -radial <0.03 (0.0012) mm (inch) |
Weight | 80 (2.83) g (oz) |
Commutation Segment | 9 segment |
PORTESCAP電機23GST2R82 216P.1產品介紹

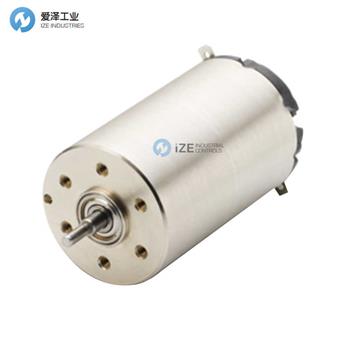

23GST2R82 有刷直流空心杯電機 23GST2R82 216P.1
無鐵芯結構
高性能釹磁鐵
高功率密度封裝
刷子壽命長
緊湊的設計
可以繞組
高加速度
低自熱
23GST2R82 Brush DC Coreless Motor 23GST2R82 216P.1
Ironless construction
Neodymium magnet for high performance
High power density package
Long brush life
Compact design
Winding possibilities
High acceleration
Low self heating

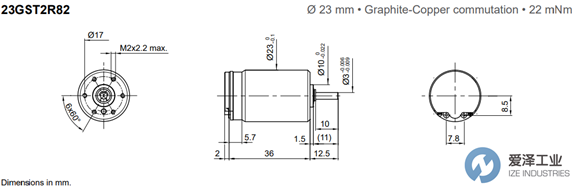

PORTESCAP電機23GST2R82系列技術尺寸
PORTESCAP電機23GST2R82系列其他常用型號:
PORTESCAP 23GST2R82 216E.1
PORTESCAP 23GST2R82 216P.1
PORTESCAP Motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PORTESCAP電機23GST2R82 216P.1的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for PORTESCAP products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
PORTESCAP電機23GST2R82 216P.1技術參數及尺寸
