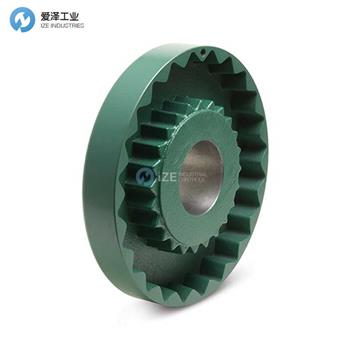

TB WOODS聯軸器7SC35技術參數
Technical Specifications | |
Product Family | Sure-Flex Type SC Spacer Flange |
Material | High Strength Cast Iron |
Size | 7 |
Rated Torque | 940 lb-in with EPDM or Neoprene sleeve; 2,875 lb-in with Hytrel sleeve |
Max RPM | 5,250 RPM |
Weight | 2.5 lbs |
Max Angular Gap Misalignment | 0.081 in with EPDM/Neoprene Sleeves and 0.020 in with Hytrel Sleeves |
Max Angular Misalignment | 1° with EPDM/Neoprene Sleeves and 1/4° with Hytrel Sleeves |
Max Parallel Misalignment | 0.020 in with EPDM/Neoprene Sleeves and 0.012 in with Hytrel Sleeves |
Component WR2 | 0.043 lb-ft2 |
Distance Between Shafts | 3 1/2 in |
Hub | Spacer Flange |
Spacer Hub Required | 7SCH x bore Spacer Hub |
(C) Length Through Bore | 1 5/8 in |
(D) Outside Diameter | 4 5/8 in |
(E) SF Hub Length | 15/32 in |
(H) SF Hub Diameter | 2 13/16 in |
(T) SF Flange Length | 25/32 in |
TB WOODS聯軸器Sure-Flex系列介紹
使用 Sure-Flex 聯軸器，無需潤滑和維護。因此，這些聯軸器可為各種應用提供清潔、可靠和安靜的性能。
With Sure-Flex couplings, the need for lubrication and maintenance is eliminated. As a result, these couplings provide clean, dependable, and quiet performance for a variety of applications.
