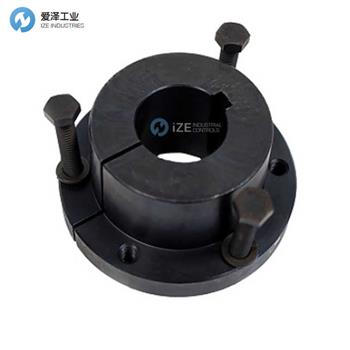

TB WOODS襯套E-65MM技術參數
Type: | QD | |
Size: | E | |
Bore: | 65 (mm) | |
Keyway: | Standard | |
Design: | Standard | |
Hardware: | Inch Series | |
Mounting: | Conventional or Reverse | |
A Dimension: | 0.75 in | |
B Dimension: | 3.83 in | |
D Dimension: | 1.63 in | |
E Dimension: | 1.88 in | |
F Dimension: | 1.63 in | |
L Dimension: | 2.63 in | |
Bolt Circle: | 5.00 in | |
Key Size: | 18 x 11 mm | |
Torque Capacity: | 20,000 in-lbs | |
Series: | Sure-Grip? Bushing | |
Weight: | 7.6 lbs |
TB WOODS襯套Sure-Grip系列介紹
Sure-Grip? 快速可拆卸襯套易于安裝和拆卸。分體式法蘭和錐度在軸上提供真正的夾緊,相當于收縮配合。除 JA 和 QT 之外的所有尺寸在鍵上都有一個固定螺釘,以幫助保持襯套在軸上的位置,直到有頭螺釘被牢固地?cái)Q緊。多功能 Sure-Grip? 軸套允許將相同的配合部件安裝在不同直徑的軸上,并使用相同的軸套將不同的滑輪安裝在同一軸上。
Sure-Grip? Quick Detachable bushings are easy to install and remove. Split-through flange and taper provide a true clamp on the shaft that is equivalent to a shrink fit. All sizes except JA and QT have a set screw over the key to help maintain the bushing’s position on the shaft until the cap screws are securely tightened. Versatile Sure-Grip? bushings permit the mounting of the same mating part on shafts of different diameters, and the mounting of different sheaves on the same shaft using the same bushing.
TB WOODS襯套Sure-Grip系列其他常用型號:
TB WOODS E35MM
TB WOODS E38MM
TB WOODS E40MM
TB WOODS E42MM
TB WOODS E45MM
TB WOODS E48MM
TB WOODS E50MM
TB WOODS E55MM
TB WOODS E60MM
TB WOODS E65MM
TB WOODS E7OMM
TB WOODS E75MM
TB WOODS E8OMM
TB WOODS Bushing NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TB WOODS襯套E-65MM的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for TB WOODS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
