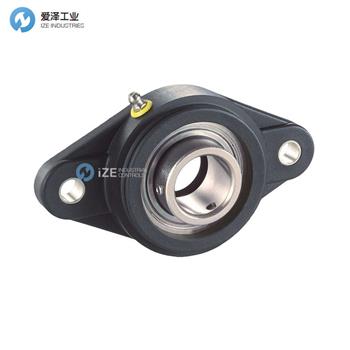

SYSTEM PLAST軸承UCFH207-35M-SS技術參數
| ||
Duty: | Standard | |
Rolling Elements: | Ball | |
Bearing Material: | 400 Series Stainless Steel | |
Housing: | Black Polyamide | |
Self-Alignment: | ± 1° | |
Lock: | Setscrew | |
Bearing Seal: | Single Lip Contact | |
Back Seal: | Spring Seal | |
End Cap: | Yellow Protective Cap | |
Temperature: | 30° to 180°F (0° to 82°C) | |

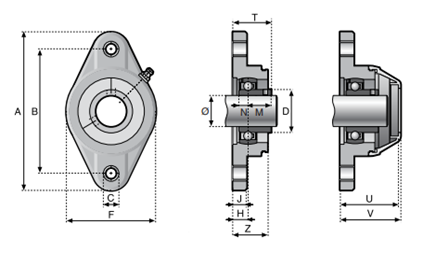

Bore Diameter | 35 mm | |
A | 163.1 mm | |
B | 130.0 mm | |
C | 14.0 mm | |
D | 46.7 mm | |
F | 89.9 mm | |
H | 18.0 mm | |
J | 15.7 mm | |
M | 25.4 mm | |
N | 9.7 mm | |
T | 43.4 mm | |
U | 63.8 mm | |
V | 65.8 mm | |
Z | 33.0 mm | |
Weight (lbs/kgs) | 0.62 | |
SYSTEM PLAST軸承產品介紹
適用于食品和飲料加工中常見的惡劣沖洗環境的模塊化軸承組件，包括密封和潤滑的英制和公制軸承，包含各種外殼樣式、安裝樣式和外殼材料，帶有可選的端蓋和后密封件。 當支撐具有徑向載荷的旋轉軸時，安裝的滾珠軸承支架提供了一種減摩解決方案。
外殼形式
法蘭、枕塊和卷取組件
軸承插入材料
400 系列不銹鋼、鉻鋼 AISI 52100
鎖定樣式
緊定螺釘
孔徑尺寸范圍
?” 至 1 ?” 和 20 mm 至 40 mm
外殼材料
聚酰胺，Nolu-清潔
Modular bearing assembly for harsh wash down environments often found in food and beverage processing consisting of sealed and lubricated inch and metric bearing contained with a variety of housing styles, mounted styles and housing materials with optional end caps and back seals. Mounted ball bearing supports provide an anti-friction solution when supporting rotating shafts with radial loads.
Housing Styles
Flanges, Pillow Block and Take Up Assemblies
Bearing Insert Materials
400 Series Stainless Steel, Chrome Steel AISI 52100
Locking Styles
Setscrew
Bore Diameter Size Range
?” to 1 ?” And 20 mm to 40 mm
Housing Materials
Polyamide, Nolu?-Clean

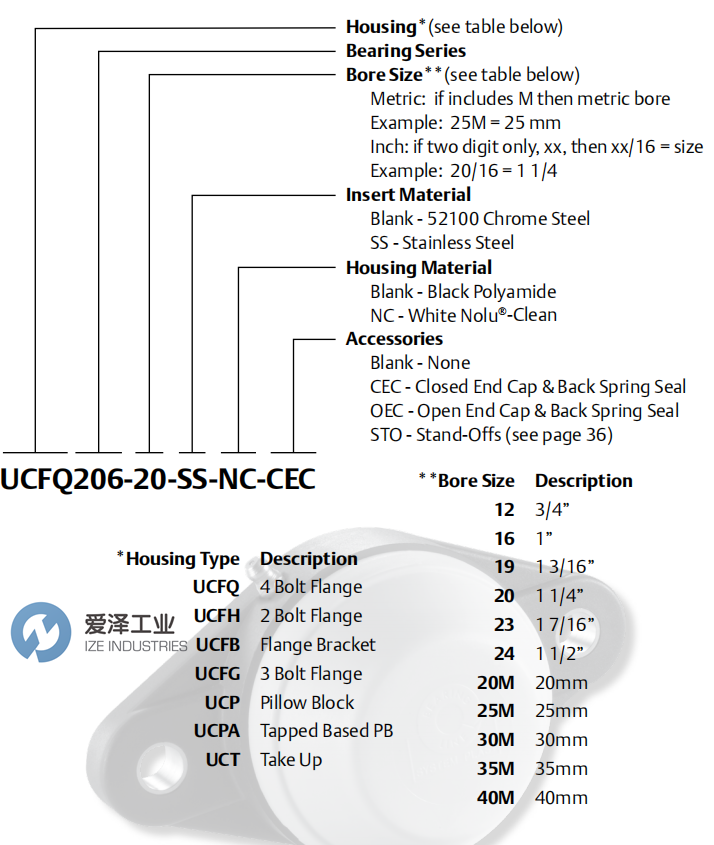

SYSTEM PLAST軸承系列選型
SYSTEM PLAST軸承UCFH系列其他常用型號：
SYSTEM PLAST UCFH206-20-SS-OEC
SYSTEM PLAST UCFH206-30M-SS
SYSTEM PLAST UCFH206-30M-SS-CEC
SYSTEM PLAST UCFH206-30M-SS-OEC
SYSTEM PLAST UCFH207-20-SS
SYSTEM PLAST UCFH207-23-SS
SYSTEM PLAST UCFH207-23-SS-CEC
SYSTEM PLAST UCFH207-23-SS-OEC
SYSTEM PLAST UCFH207-35M-SS
SYSTEM PLAST UCFH207-35M-SS-CEC
SYSTEM PLAST UCFH207-35M-SS-OEC
SYSTEM PLAST UCFH208-24-SS
SYSTEM PLAST UCFH208-24-SS-CEC
SYSTEM PLAST UCFH208-24-SS-OEC
SYSTEM PLAST UCFH208-40M-SS
