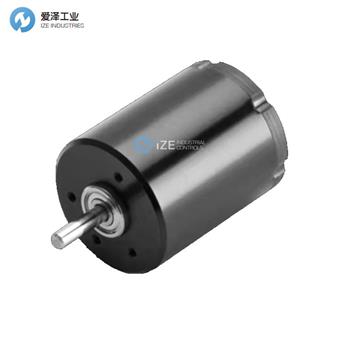

PORTESCAP電機26BC-6A-110.101技術規格
Part Number | 26BC 6A 110 .101 |
Motor Diameter (mm) | 26 |
Ambient Operating Temperature Range (°C) | 0 to +70 |
Ambient Storage Temperature Range (°C) | 0 to +70 |
Axial Static Force w/o Shaft Support, Max (N) | 45 |
Back EMF Constant (V/1000 rpm) | 0.96 |
Ball Bearings Preload (N) | 5 |
Continuous Current, Max (A) | 0.6 |
Continuous Mechanical Power, Max (@25°C) (W) | 4.5 |
Continuous Torque, Max (mNm) | 4.2 |
Electrical Time Constant (ms) | 0.02 |
Housing Material | Aluminium Alloy / Plastic |
Hall Sensor Electrical Phasing (electrical °) | n/a |
Inductance - Phase to Phase (mH) | 0.122 |
Internal Resistance - Phase to Phase (Ohm) | 6.8 |
Mechanical Time Constant (ms) | 75 |
Motor Constant (mNm/W?) | 3.53 |
Motor Regulation (103/Nms) | 80.3 |
Motor Speed, Max (rpm) | 8000 |
No-Load Current, Typical (mA) | 170 |
No-Load Speed (rpm) | 7250 |
Nominal Voltage (V) | 7.5 |
Optimization Direction | Symmetrical |
Rotor Inertia (gcm2) | 9.4 |
Thermal Resistance (Slotless) (°C/W) | 14 |
Thermal Time Constant (s) | 660 |
Torque Constant (mNm/A) | 9.2 |
Weight (g) | 72 |
Winding Temperature, Max (°C) | 125 |
Continuous Speed, Max (rpm) | 8000 |
Feedback Type | Integrated Electronics |
Number of Poles | 2 pole |
PORTESCAP電機26BC 6A系列介紹
26BC無刷直流無槽電機采用自支撐圓柱形無鐵芯線圈，采用無鐵芯直流電機相同的繞組技術制成。26BC微型電機使用壽命長，速度和位置控制出色，旋轉平穩。集成電子設備具有方向選擇、啟動/停止功能和輸出速度信號。
The 26BC brushless DC slotless motor utilizes a self-supporting cylindrical ironless coil made in the same winding technique as our ironless DC motors. The 26BC mini motor offers long life, excellent speed and position control and smooth rotation. The integrated electronics features direction selection, start/stop function and output speed signal.
PORTESCAP電機26BC 6A系列其他常用型號：
PORTESCAP 26BC 6A 107.101
PORTESCAP 26BC 6A 110.101
PORTESCAP 26BC 6A 113.101
PORTESCAP 26BC 6A 119.101
