RADICON減速機C系列技術參數
Unit Sizes: | 03, 04, 05, 06, 07, 08, 09, 10 |
Input Power: | Up to 45kW (60HP) |
Output Torque: | Up to 10,000Nm (88,500 lb.in) |
Gear Ratios: | From 8:1 to 250:1 in a double unit and 16,000:1 in combined units |
Motor Sizes: | IEC Frames from 63 to 225; NEMA Frames from 56 to 326 |
RADICON減速機C系列介紹
C系列直角螺旋蝸輪蝸桿減速電機和減速器提供了一種高效緊湊的解決方案，可滿足高達45 kW的要求，最大輸出扭矩容量為10,000Nm。
C系列螺旋/蝸桿單元構成了動力傳動驅動長線的一部分，這些驅動裝置以優質的設計和技術解決方案以及使用高質量的材料和組件組成。
這種類型的減速電機和減速器有8種尺寸，可提供高承載能力、更高的效率、安靜的運行和可靠性。
這些裝置由一系列模塊化套件制造和組裝，從而最大限度地減少庫存并使產品隨時可用。
提供插入式輸出軸和法蘭上的螺栓，增加了范圍的靈活性
可作為法蘭或底腳或軸安裝執行的雙倍、三倍、四倍和五倍減速單元提供。提供電動、電機就緒（接受客戶自己的 IEC/NEMA 電機）或帶鍵輸入軸的減速器。
所有齒輪箱均為鑄鐵。
Series C right angle helical worm geared motors and reducers provide a highly efficient and compact solution to meet requirements up to 45 kW with maximum output torque capacity of 10,000Nm.
The Series C range of helical/ worm units forms a part of a long line of power transmission drives which are known for their top quality design and technical solution, along with the use of high quality materials and components.
The 8 sizes of this type of geared motors and reducers offer high load carrying capacity, increased efficiency, quiet running and reliability.
These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.
Available with plug in output shaft and bolt on flanges, add flexibility to the range
Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot or shaft mount execution. Available as motorised, motor ready (to accept clients own IEC/ NEMA motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.
RADICON減速機C系列選型
RADICON減速機C系列其他常用型號：
RADICON C0621140WMZJ1AGA
RADICON C0441280ENA-1A.25B
RADICON C0631118BABX2
RADICON Motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于RADICON減速機C0621140WMZJ1AGA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for RADICON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

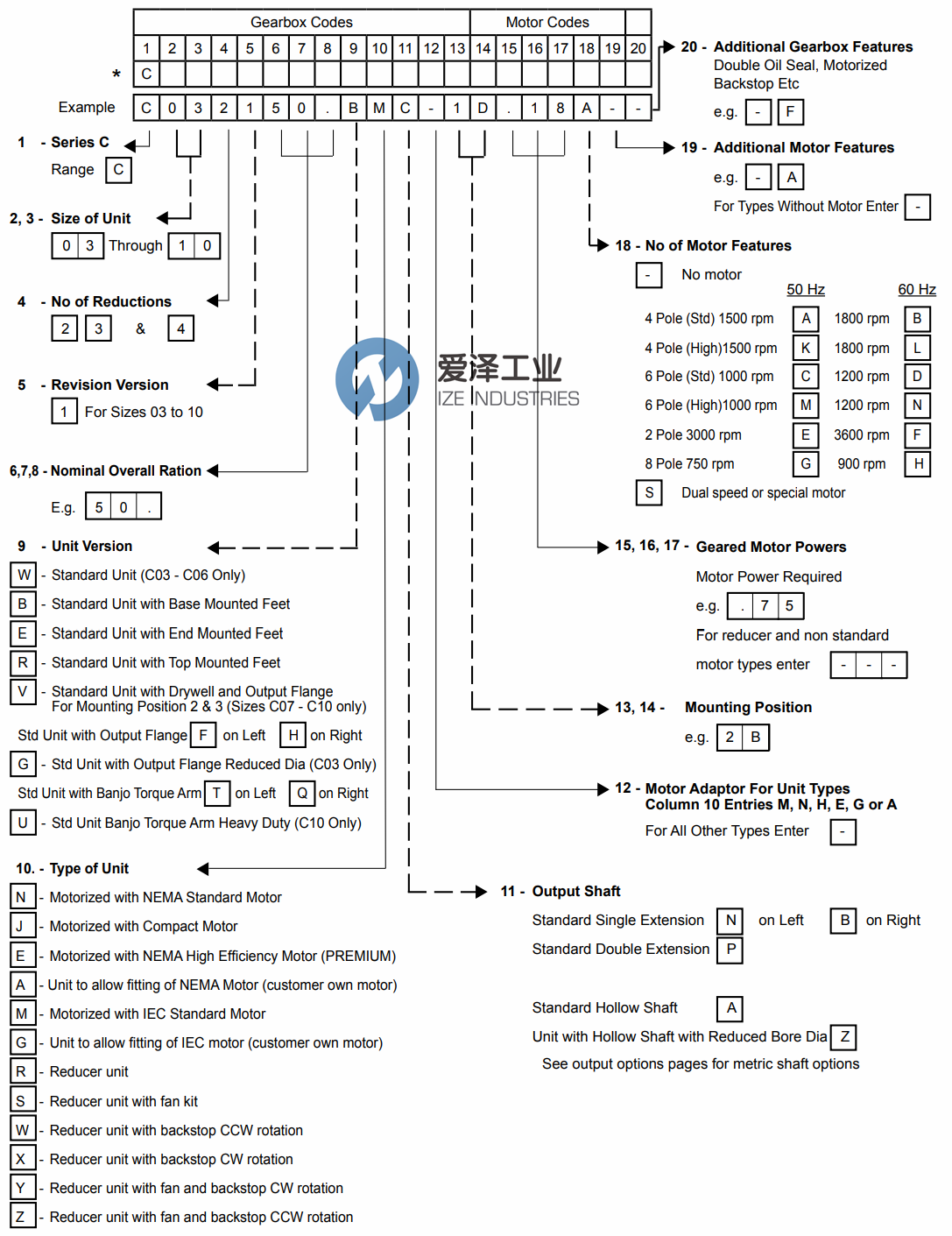

RADICON減速機C系列C0621140WMZJ1AGA選型介紹
