GATES同步帶MPCC 8M 608 11.2SPL技術規格
Description | MPCC 8M 608 11.2 SPL |
Product # | 9270-01034 |
UPC | 770075323105 |
Pitch Length (mm) | 608 |
Pitch (mm) | 608 |
Section | 8M |
Number of Teeth | 76 |
Width (mm) | 11.2 |

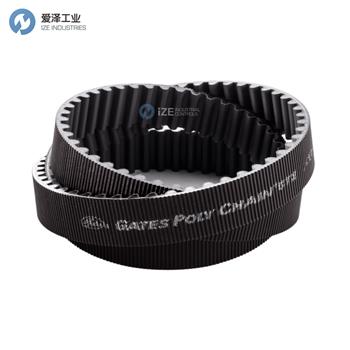

GATES同步帶Mini Poly Chain GT Carbon系列介紹
這種緊湊型聚氨酯同步帶為輸送機驅動器的設計有了新機遇，是滾子鏈的替代品。Mini Poly Chain GT Carbon不需要潤滑或張緊，即使在高運輸速度下也具有低噪音的特點。 特殊的結構對灰塵、油和化學品等侵蝕性影響具有很強的抵抗力。
齒和同步帶由輕質聚氨酯化合物制成，專門混合用于粘附到繩索和織物上。
碳纖維張力繩提供非凡的動力承載能力。
碳的彎曲疲勞壽命非常長，其高沖擊強度可承受沖擊和浪涌載荷。
This compact polyurethane synchronous belt opens up new opportunities in the design of conveyor drives and is an alternative to roller chains. Mini Poly Chain GT Carbon does not require lubrication or tensioning and is characterised by low noise levels even at high transport speeds. The special construction is highly resistant to aggressive in?uences such as dust, oil and chemicals.
Teeth and body are made of a lightweight polyurethane compound, specially blended for adhesion to the cords and fabric.
The carbon fibre tensile cords provide extraordinary power carrying capacity.
Flex fatigue life of carbon is exceptional, and its high impact strength withstands shocks and surge loading.
GATES同步帶Mini Poly Chain GT Carbon系列其他常用型號：
GATES MPCC 8M 608 21 SPL
GATES MPCC 8M 544 11.2 SPL
GATES MPCC 8M 608 11.2 SPL
GATES MPCC 8M 480 21 SPL
GATES MPCC 8M 456 21 SPL
GATES MPCC 8M 456 11.2 SPL
GATES MPCC 8M 544 36 SPL
GATES MPCC 8M 288 62 SPL
GATES MPCC 8M 352 62 SPL
GATES MPCC 8M 480 36 SPL
