BER-MAR電機S.632-4-B5技術規格
Electrical data | |
Rated Power | 0.18 kW |
RPM | 1350 min-1 50Hz |
Frequency | 50/60 Hz |
Poles | 4 |
Power Supply(+/-10%) | 230 VD/50Hz |
Rated Torque | 1.33 Nm |
Rated Current | 1.35/0.78 A (In) |
Starting Current | 3.9 x In (A) |
Starting Torque | 2.1 xCn (Nm) |
Torque MAx. | 1.8 xCn (Nm) |
Efficiency Class | IE1 |
Power Factor cosf | 0.66 100% Efficiency |
General data | |
Frame Size | 63 |
Mounting | B5 |
Weight | 4.2 Kg |
Casing Material | ALUMINUM |
Protection | IP 55 |
Tropicalization | ON REQUEST |
Vibration Class | N |
Duty | S3 70% |
Direction of rotation | BIDIRECTIONAL |
Cooling System | IC 411 |
Cable Entry | 1 M16x1.5 |
Standards | IEC/DIN/ISO/VDE/EN |
Execute at Standard | IEC 60034-1 |
Paintwork | Standard: Aluminum |
Year of construction | Reference on the motor plate |
Site conditions | |
Ambient Temperature | from -20°C to +40°C |
Altitude above sea level | 1000 m |

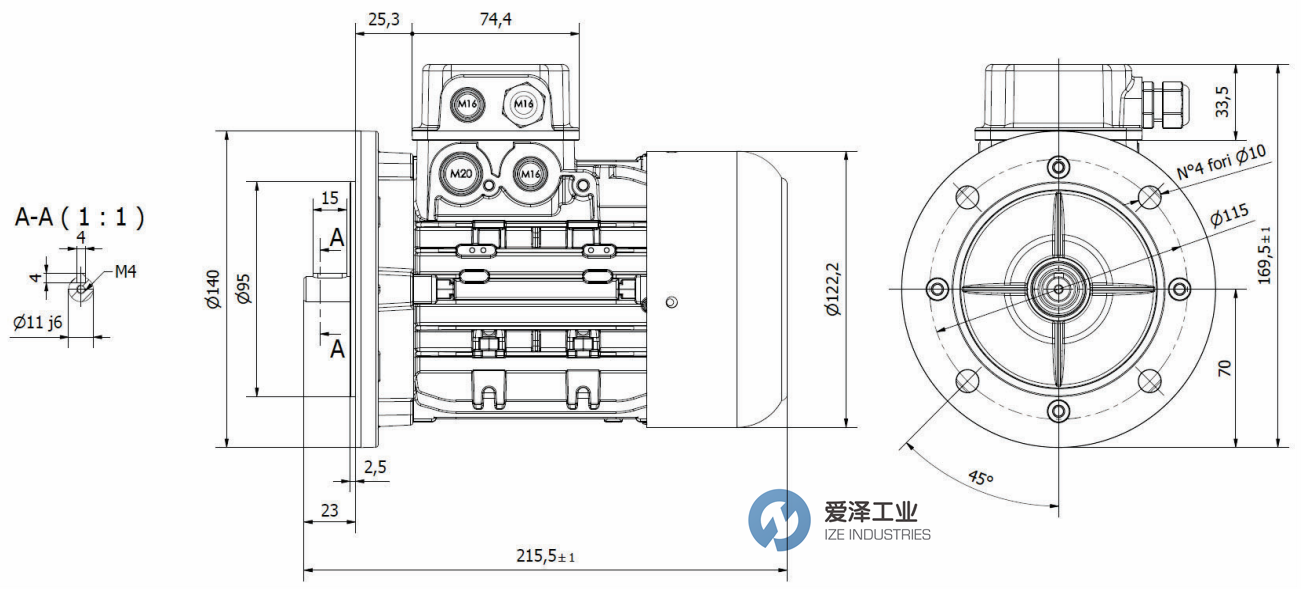

BER-MAR電機S.632-4-B5技術尺寸
BER-MAR電機S系列其他常用型號：
BER-MAR S.632-4-B5
BER-MAR S 561-4-B14
BER-MAR S 562-4-B3
BER-MAR S 713-4-B5
BER-MAR S2 112M-6-B3
BER-MAR S 132L-8-B3
BER-MAR S 801-4-B5
BER-MAR S3.132S2-2-B3
