BER-MAR電機AF.71.S4.5000技術規格
Electrical data | |
Rated Power | 0.37 kW |
RPM | 1380 min-1 50Hz |
Frequency | 50/60 Hz |
Poles | 4 |
Power Supply(+/-10%) | 230 VD/50Hz |
Rated Torque | 2.58 Nm |
Rated Current | 1.95/1.13 A (In) |
Starting Current | 4.3 x In (A) |
Starting Torque | 2.5 xCn (Nm) |
Torque MAx. | 2.4 xCn (Nm) |
Efficiency Class | IE1 |
Power Factor cosf | 0.75 100% Efficiency |
General data | |
Frame Size | 71 |
Mounting | B5 |
Weight | 7.7 Kg |
Casing Material | ALUMINUM |
Protection | IP 55 |
Tropicalization | ON REQUEST |
Vibration Class | N |
Duty | S3 70% |
Direction of rotation | BIDIRECTIONAL |
Cooling System | IC 411 |
Cable Entry | 2 M16x1.5 - 1 M20x1.5 |
Standards | IEC/DIN/ISO/VDE/EN |
Execute at Standard | IEC 60034-1 |
Paintwork | Standard: Aluminum |
Year of construction | Reference on the motor plate |
Site conditions | |
Ambient Temperature | from -20°C to +40°C |
Altitude above sea level | 1000 m |

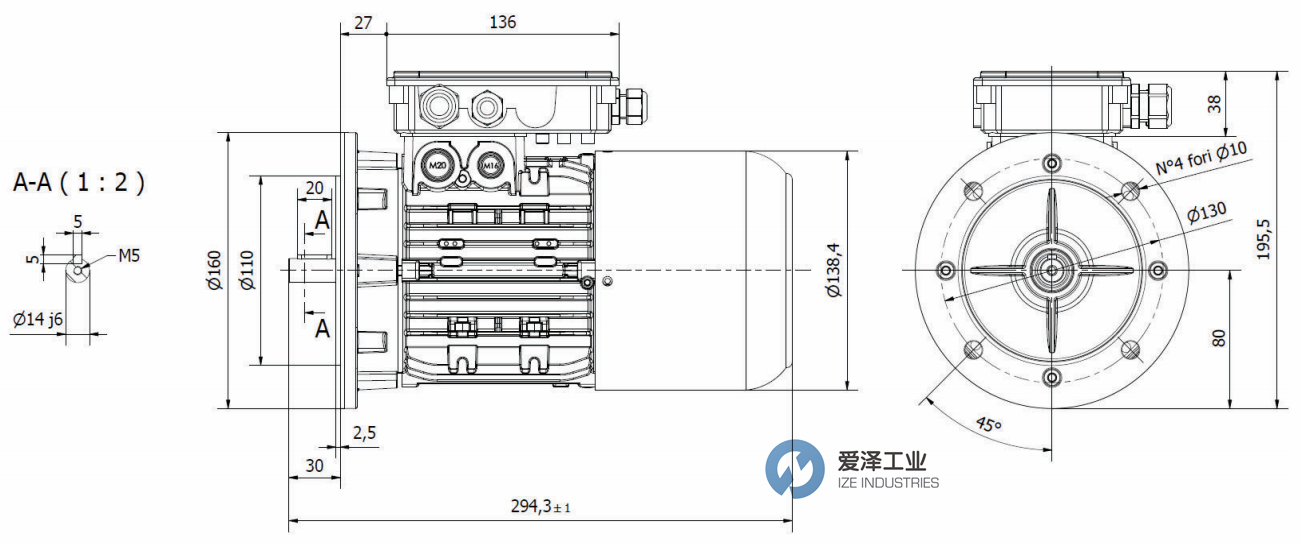

BER-MAR電機AF.71.S4.5000技術尺寸
BER-MAR電機AF系列其他常用型號：
BER-MAR AF.71.S4.5000
BER-MAR AF.71.S4.5050
BER-MAR AF2 802-4-B3
BER-MAR AF 713-2-B3
BER-MAR AF2 90S-6-B3
BER-MAR AF3 90S-6-B3
BER-MAR AF 100L1-8-B14
BER-MAR AF3 801-2-B5
BER-MAR AF 713-4-B3
BER-MAR AF2 100L1-2-B3
