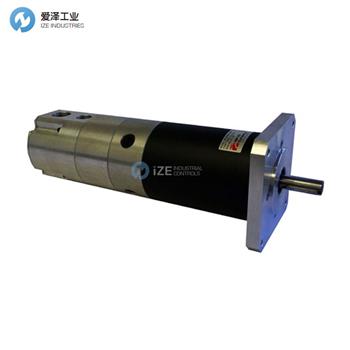

SERVO DYNAMICS伺服電機MTS30M4-38技術參數
Technical Data | |
GENERAL | |
Voltage Gradient No Load | 38 Volts/1000RPM |
Max. Terminal Voltage | 140 Volts |
Max. Speed | 3700 RPM |
Continuous Stall Torque TENV | 3.0 Nm 26 lb- in |
Continuous Stall Torque Blower Cooled | 5.5 Nm 49 lb- in |
Continuous Stall Current TENNV | 8.6 Amps |
Armature Polar Moment of Inertia | 0.0017 Kgm2 0.015 lb- in Sec2 |
Torque Constant KT | 0.35 Nm/Amp 3.1 lb- in/Amp |
Voltage Constant KV | 0.35 Volts Sec Rad -1 |
Peak Stall Torque | 14 Nm 124 lb- in |
Current at Peak Torque | 47 Amps |
Theoretical Acceleration at Peak Torque | 8200 Rad/Sec2 |
Winding | |
Armature Resistance Less Brushes | 0.82 Ohms |
Armature Inductance | 6.5 Millihenrys |
Mechanical Time Constant | 15 Milliseconds |
Thermal | |
Insulation Class | F |
Max. Ambient Temperature | 40 (104) °C (°F) |
Thermal Time Constant | 50 Minutes |
Mechanical | |
Static Friction Torque | 0.15 Nm 1.3 lb- in |
Motor Weight | 7.3 Kg 16 lb |
SERVO DYNAMICS伺服電機其他常用型號：
SERVO DYNAMICS MTS30F4-25
SERVO DYNAMICS MTS30M4-38
SERVO DYNAMICS MTS30R4-42
SERVO DYNAMICS MTS30U4-42
SERVO DYNAMICS MTS30U4-42
SERVO DYNAMICS Servo amplifier NEW + ORIGINAL+ ONE YEAR WARRANTY
