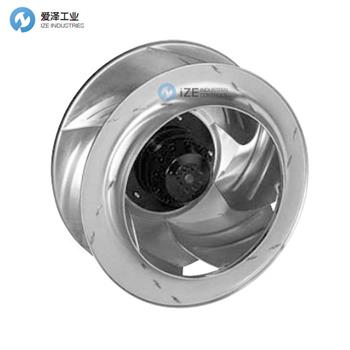

EBMPAPST風機R2E175-AC79-29技術參數
Technical description | |
Weight | 1.3 kg |
Size | 175 mm |
Motor size | 68 |
Rotor surface | Unpainted |
Impeller material | Sheet steel, galvanized |
Number of blades | 16 |
Direction of rotation | Clockwise, viewed toward rotor |
Degree of protection | IP44; installation- and position-dependent |
Insulation class | B |
Moisture (F) / Environmental (H) protection class | H0 - dry environment |
Max. permitted ambient temp. for motor (transport/storage) | + 80 °C |
Min. permitted ambient temp. for motor (transport/storage) | - 40 °C |
Installation position | Any |
Condensation drainage holes | None |
Mode | S1 |
Motor mounting | Ball bearing |
Touch current according to IEC 60990 | < 0.75 mA |
Motor protection | Thermal overload protector (TOP) internally connected |
With cable | Variable |
Protection class | I (if the protective earth is connected by the customer to the marked PE connection point) |
Conformity with standards | EN 60335-1; CE |
Approval | CSA C22.2 No. 77; CCC; UL 1004-3 |
EBMPAPST風機R2E系列其他常用型號：
EBMPAPST R2E220-AA44-23
EBMPAPST R2E220-AB08-12
EBMPAPST R2E220-AA40-23
EBMPAPST R2E220-AB08-62
EBMPAPST R2E220-RB86-11
EBMPAPST R2E220-RB86-33
EBMPAPST R2E220-RB86-34
EBMPAPST R2E225-AB13-05
EBMPAPST R2E225-BD92-58
EBMPAPST R2E225-BE47-09
EBMPAPST R2E225-BE51-09
EBMPAPST R2E250-AL03-10
EBMPAPST R2E250-AP07-11
EBMPAPST R2E175-AC79-29
EBMPAPST Centrifugal fans NEW + ORIGINAL+ ONE YEAR WARRANTY
