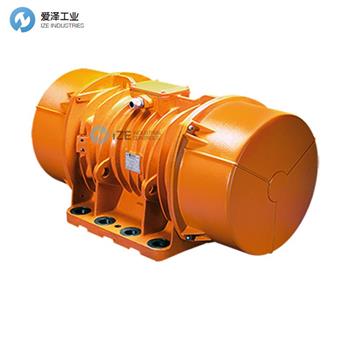

ITALVIBRAS電機MVSI075/12000-S90技術參數
KW – 7.6
Volt – 230/400V 3Ph
Hertz – 50/60Hz (See data sheet)
RPM – 750
Insulation – CLASS F
Centrifugal Force KN – 85.2
Centrifugal Force KG – 8689
Full Load Amps – 14.0 at 400V
Frame – MVSI075/12000
Efficiency Rating – IP66
Weight KG – 540
ATEX Rated – The MVSI range can be used in Areas 21 and 22
Manufactured with Heavy Duty Bearings
Adjustable weights to alter the vibration
Inverter rated from 20Hz to base frequency with constant torque
Complete with full easy to use wiring diagram
千瓦 – 7.6
電壓 – 230/400V 3Ph
赫茲 – 50/60Hz(參見數據表)
轉速 – 750
絕緣 – F 級
離心力 KN – 85.2
離心力 KG – 8689
滿載電流 – 400V 時為 14.0
框架 – MVSI075/12000
效率等級 – IP66
重量公斤 – 540
ATEX 評級 – MVSI 系列可用于區域 21 和 22
采用重型軸承制造
可調節重量以改變振動
變頻器額定頻率從20Hz到基頻恒轉矩
配有完整且易于使用的接線圖
ITALVIBRAS電機MVSI-TS系列介紹
The MVSI series represents the line of reference products for manufacturer’s of vibrating machines and plants operating in many industrial sectors and is made up of the largest range on the market, with centrifugal force values up to 30500 Kgf (300kN).
The MVSI series has been conceived to guarantee higher performance in all conditions and environments and complies with the most recent IEC and EN international standards for use in atmospheres with potentially explosive powders.
MVSI 系列代表了振動機器制造商和在許多工業領域運行的設備的參考產品系列,由市場上最大的范圍組成,離心力值高達 30500 Kgf (300kN)。
MVSI 系列旨在保證在所有條件和環境中具有更高的性能,并符合最新的 IEC 和 EN 國際標準,用于在具有潛在爆炸性粉末的環境中使用。
ITALVIBRAS電機MVSI-TS系列其他常用型號:
ITALVIBRAS MVSI075/30000-S90
ITALVIBRAS MVSI075/22000-S90
ITALVIBRAS MVSI075/17000-S90
ITALVIBRAS MVSI075/14000-S90
ITALVIBRAS MVSI075/12000-S90
ITALVIBRAS MVSI075/10000-S08
ITALVIBRAS MVSI075/6800-S08
ITALVIBRAS MVSI075/6500-S08
ITALVIBRAS MVSI075/5300-S08
ITALVIBRAS MVSI075/4200-S08
ITALVIBRAS MVSI075/3800-S08
ITALVIBRAS MVSI075/3110-S08
ITALVIBRAS MVSI075/2110-S08
ITALVIBRAS MVSI075/1750-S08
ITALVIBRAS MVSI075/1310-S08
ITALVIBRAS MVSI075/910-S08
ITALVIBRAS MVSI075/660-S08
ITALVIBRAS MVSI075/530-S02
ITALVIBRAS MVSI075/400-S02
ITALVIBRAS MVSI075/250-S02
ITALVIBRAS MVSI075/150-S02
ITALVIBRAS motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ITALVIBRAS電機MVSI075/12000-S90的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
