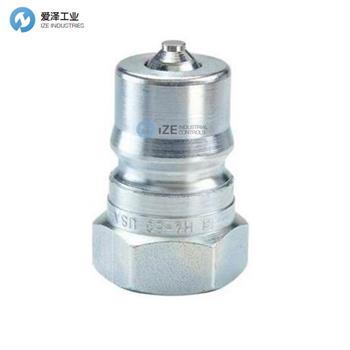

PARKER接頭H8-63技術規格
Technical Specifications | |
Connection Thread Size (inch): | 1 - 11 1/2 |
Body Size (inch): | 1 |
Application: | General Purpose |
Body Material: | Steel |
Maximum Working Pressure (psi): | 2000 |
Seal Material: | Nitrile |
Connection Type: | NPTF |
Maximum Operating Pressure: | 2000 psi, 136 bar |
Flow Rate: | 50 Gal/min, 189 L/min |
Media: | Hydraulic |
Specifications Met: | ISO 7241-1, series B |
Coupling Half: | Nipple |
Minimum Operating Temperature: | -40 °F, -40 °C |
Maximum Operating Temperature: | 250 °F, 121 °C |
Valve Type: | Poppet |
Vacuum Pressure Rating: | 27.4 Inch-Hg, -0.9 bar |
Thread Size: | Female |
Plating Type: | Zinc with clear trivalent chromate |
Valve Material: | Steel |
PARKER接頭60系列介紹
60系列接頭（液壓、流體、氣體、蒸汽）高達 5000 psi，與 ISO 7241 系列 B、60 系列耦合器連接。
Parker的60系列具有雙截止提升閥，可與符合 ISO 7241 B 系列的其他快速接頭互換。
這些通用快速接頭有多種尺寸和材料可供選擇，適用于多種流體，包括高溫蒸汽。 Parker 60 系列是多用途的，適用于各種應用和高達 5000 psi 的壓力。
技術特點：
? 尺寸：1/8” – 2-1/2”
? 材料：鋼、黃銅、302 不銹鋼、316 不銹鋼
? 端口端：內螺紋 NPTF、內螺紋 ORB
? 密封選項：丁腈橡膠、EPR、碳氟化合物、氯丁橡膠
60 Series Nipples (hydraulic, fluids, gas, steam) up to 5000 psi, connect with ISO 7241 series B, 60 Series Couplers.
Parker's 60 Series have double shut-off poppet valves and are interchangeable with other quick disconnects complying with ISO 7241 series B.
These general purpose quick couplings are available in a wide range of sizes and materials to be versatile for use with several fluids, including high temperature steam. Parker's 60 Series is multi-purpose for a variety of applications and pressures up to 5000 psi.
Technical Characteristics:
? Sizes: 1/8” – 2-1/2”
? Materials: Steel, Brass, 302 Stainless Steel, 316 Stainless Steel
? Port Ends: Female NPTF, Female ORB
? Seal Options: Nitrile, EPR, Fluorocarbon, Neoprene
PARKER接頭60系列其他常用型號：
PARKER H8-63
PARKER H8-63-T16
PARKER H8-63W
PARKER H6-63
PARKER H6-63-T12
PARKER H6-63W
PARKER H6-63Y
PARKER H6-63Z
PARKER H4-63
PARKER H4-63-T10
PARKER H4-63W
PARKER H4-63Y
PARKER H3-63
PARKER H3-63-T8
PARKER H3-63W
PARKER H3-63Y
PARKER H3-69
