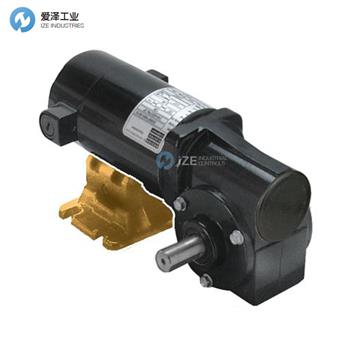

BODINE ELECTRIC電機24A4FEPM-3F技術參數
SPECIFICATIONS | |
Speed (rpm) | 125 |
Rated Torque (lb-in) | 16 |
Rated Voltage | 130V |
Amps (24V Model) | 2.6 |
Amps (130V Model) | 0.48 |
Peak Torque (lb-in) | 32 |
Motor HP | 1/17 |
Gear Ratio | 20 |
Radial Load (lbs) | 5 |
Length XH (inch) | 7.44 |
Weight (lbs) | 5.3 |
Product Type | 24A4FEPM-3F |
Accessory Shaft | YES |
HPDecimal | 0.0588 |
Connection Diagram | 07410101 |
BODINE ELECTRIC電機24A-3F系列介紹尺寸圖
24A Motor provides high starting torque, adjustable speed, and predictable performance under a range of operating conditions.
Industrial lip type seals on motor and output shafts.
Bronze sleeve bearing on output shaft for quietness.
Permanently lubricated gearing utilizing semi-fluid grease lubrication for long life.
Bronze gear for high shock load capability.
24A電動機可在一定范圍的工作條件下提供高啟動轉矩，可調速和可預測的性能。
電機和輸出軸上的工業唇型密封件。
輸出軸上的青銅套筒軸承保持安靜。
采用半流體脂潤滑的永久潤滑齒輪，使用壽命長。
青銅齒輪，具有高沖擊負載能力。
Application Information
Performance ratings of 130V models are based on use with filtered controls.
Gearhousing base mount models can be mounted via four tapped holes in bottom of the gearhead.
Motor base mount models utilize the slotted holes on the motor base for mounting.
應用信息
130V型號的性能額定值是基于與過濾控件一起使用的。
齒輪箱底座安裝型號可以通過減速機底部的四個螺孔安裝。
電機基座安裝型號利用電機基座上的長孔進行安裝。
BODINE ELECTRIC電機24A-3F系列其他常見型號：
BODINE ELECTRIC 0084
BODINE ELECTRIC 0086
BODINE ELECTRIC 0087
BODINE ELECTRIC 0088
BODINE ELECTRIC 0089
BODINE ELECTRIC 0093
BODINE ELECTRIC 0094
BODINE ELECTRIC 0096
BODINE ELECTRIC 0098
BODINE ELECTRIC 0099
BODINE ELECTRIC 4093
BODINE ELECTRIC 4094
BODINE ELECTRIC 4096
BODINE ELECTRIC 4098
BODINE ELECTRIC 4099
BODINE ELECTRIC 4693
BODINE ELECTRIC 4694
BODINE ELECTRIC 4696
BODINE ELECTRIC 4698
BODINE ELECTRIC 4699
BODINE ELECTRIC 4893
BODINE ELECTRIC Geared motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BODINE ELECTRIC電機24A4FEPM-3F的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for BODINE ELECTRIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

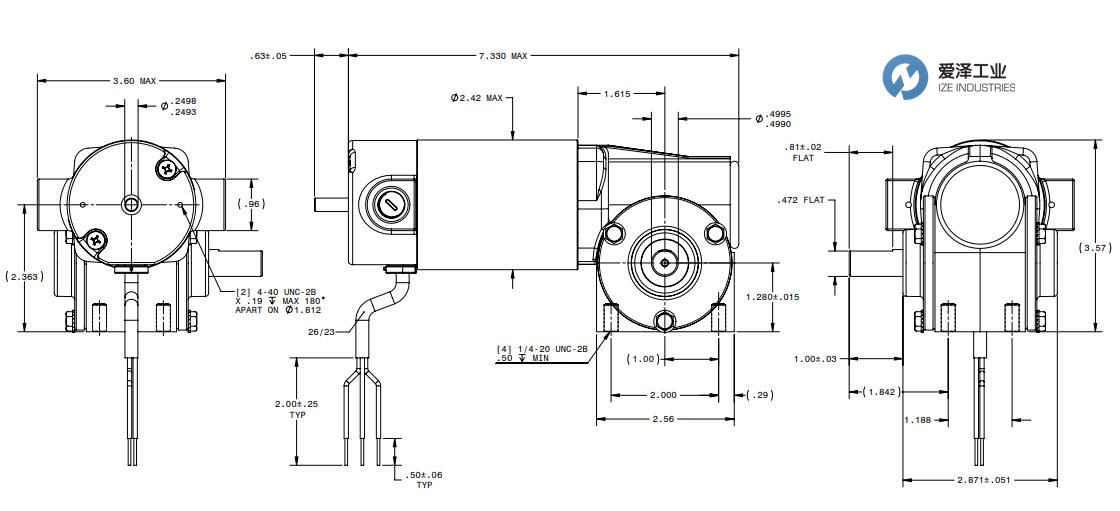

BODINE ELECTRIC電機24A4FEPM-3F參數及尺寸圖
