PORTESCAP電機35NT2R82-426SP.50技術參數
Winding Type | 35NT2R82-426SP.50 |
Measuring voltage | 32 |
No-load speed | 5900 |
Stall torque | 756 (107) |
Average No-load current | 80 |
Max. continuous current | 2.3 |
Max. continuous torque | 115 (16.3) |
Max. angular acceleration | 125 |
Back-EMF constant | 5.40 |
Torque constant | 52 (7.3) |
Terminal resistance | 2.20 |
Motor regulation R/k2 | 0.83 |
Rotor inductance | 0.40 |
Rotor inertia | 71.4 |
Mechanical time constant | 6 |

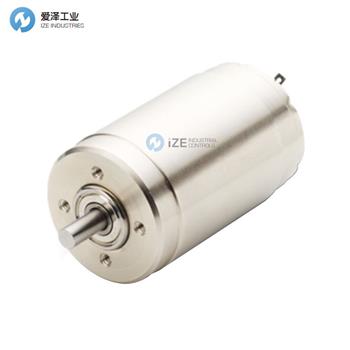

PORTESCAP電機35NT2R82系列介紹
35NT2R82電刷直流電動機提供高功率密度,并結合了石墨/銅換向,可實現高加速,并延長電刷壽命。 它可以連續執行高達150 mNm的工作,效率高達85%。
The 35NT2R82 brush DC motor offers high power density combined with graphite/copper commutation to achieve high acceleration with long brush lifetime. It can perform up to 150 mNm continuously and reach up to 85% efficiency.

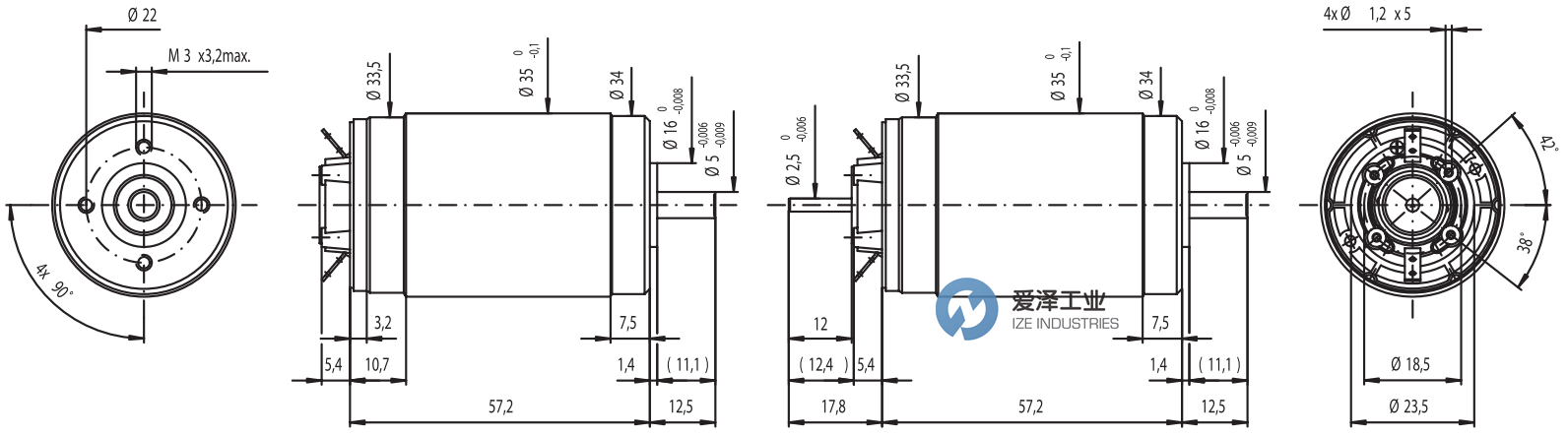

PORTESCAP電機35NT2R82系列技術尺寸圖
PORTESCAP電機35NT2R82系列其他常用型號:
PORTESCAP 35NT2R82-426SP.50
PORTESCAP 35NT2R82-226E.1
PORTESCAP 35NT2R82-426E.1
PORTESCAP 35NT2R82-426P.1
PORTESCAP 35NT2R82-426SP.1
