CONTROLTECHNIQUES電機055EDA300BACRA063110產品參數

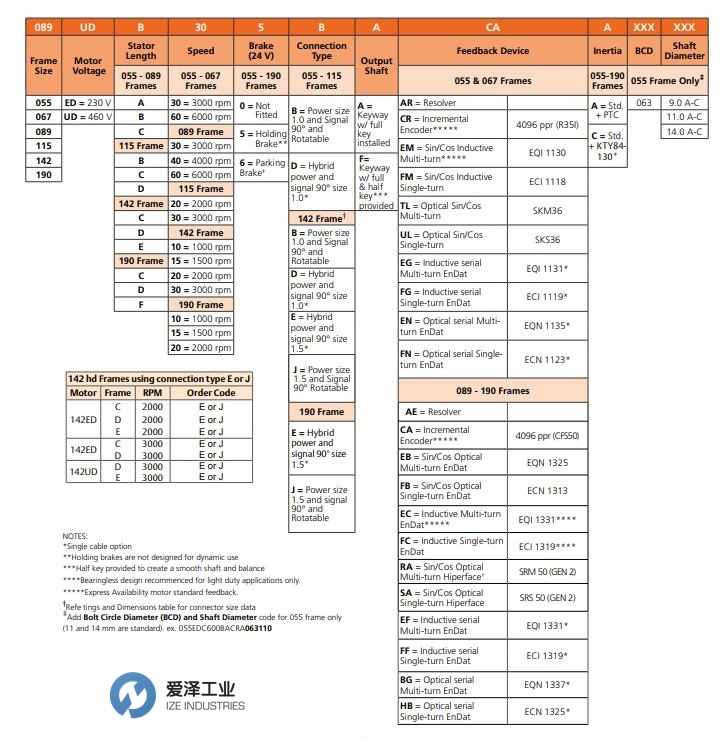

Specifications 055EDA300BACRA063110 |
055 |
ED = 230 V |
A=055 - 089 Frames |
30 = 3000 rpm |
0 = Not Fitted |
B = Power size 1.0 and Signal 90° and Rotatable |
A = Keyway w/ full key installed |
CR = Incremental Encoder***** |
A = Std. + PTC |
63110=6311.0 A-C |
CONTROLTECHNIQUES電機產品選型及介紹

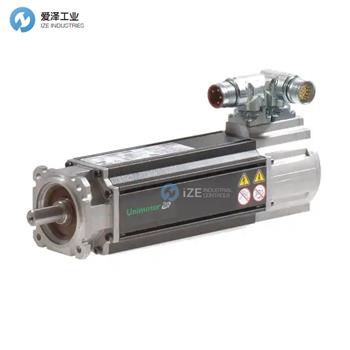

Designed for maximum torque density, the Unimotor hd brushless AC Servo motor series provides an exceptionally compact, low inertia solution for applications that require very high torque during rapid acceleration and deceleration profiles.
Unimotor hd motors fitted with high resolution SinCos or absolute encoders are pre-loaded with the motor “electronic nameplate” data during the manufacturing process. This data can be read by most Control Techniques' servo drives and used to automatically optimize the drive settings. This feature simplifies commissioning and maintenance, ensures consistent performance and saves time.
The Unimotor hd torque profile is closely matched to Digitax ST Servo drives providing up to 300% peak overload for maximum dynamic performance.
Key Features
? Torque range: 6.4 to 752 lb-in (0.72 to 85.0 Nm)
? High torque-to-inertia ratio for high-dynamic performance
? Compact and powerful
? Optional holding brake
? IP65 conformance
? Segmented stator design
? World class performance
? Winding to suit 230 V and 460 V
? Speeds include 2000, 3000, 4000 and 6000 rpm
? Large shafts to increase torsional rigidity
? Multiple feedback options:
— Incremental encoder: High accuracy, medium resolution
— Absolute: Medium accuracy, medium resolution, single-turn and multi-turn
— SinCos/absolute: High accuracy, high resolution, single-turn and multi-turn
— HIPERFACE (SICK) and EnDat (Heidenhain) protocols supported
— Resolver: Robust for extreme applications and conditions; lower accuracy, medium resolution
Unimotor hd無刷交流伺服電機系列專為大轉矩密度而設計，為在快速加速和減速過程中需要非常高轉矩的應用提供了異常緊湊，低慣性的解決方案。
裝有高分辨率SinCos或絕對編碼器的Unimotor hd電動機在制造過程中會預先加載電動機“電子銘牌”數據。大多數Control Techniques的伺服驅動器均可讀取此數據，并用于自動優化驅動器設置。此功能簡化了調試和維護，確保了一致的性能并節省了時間。
Unimotor hd扭矩曲線與Digitax ST伺服驅動器緊密匹配，可提供高達300％的峰值過載，以實現最大的動態性能。
主要特點
?扭矩范圍：6.4到752磅英寸（0.72到85.0 Nm）
?高轉矩慣量比，實現高動態性能
?緊湊而強大
?可選的抱閘
?符合IP65
?分段定子設計
?世界一流的表演
?繞組適合230 V和460 V
?速度包括2000、3000、4000和6000 rpm
?大軸增加了抗扭剛度
?多種反饋選項：
—增量編碼器：高精度，中等分辨率
—絕對：中等精度，中等分辨率，單圈和多圈
— SinCos / absolute：高精度，高分辨率，單圈和多圈
—支持HIPERFACE（SICK）和EnDat（Heidenhain）協議
—解析器：在極端應用和條件下都很堅固；較低的精度，中等分辨率
CONTROLTECHNIQUES電機55系列其他常見型號：
CONTROLTECHNICS 055EDA300BACRA063110
CONTROLTECHNICS 055EDA300BACRA
CONTROLTECHNICS 055EDA301BACRA
CONTROLTECHNICS 055EDA600BACRA
CONTROLTECHNICS 055EDA601BACRA
CONTROLTECHNICS 055EDB300BACRA
CONTROLTECHNICS 055EDB301BACRA
CONTROLTECHNICS 055EDB600BACRA
CONTROLTECHNICS 055EDB601BACRA
CONTROLTECHNICS 055EDC300BACRA
CONTROLTECHNICS 055EDC301BACRA
CONTROLTECHNICS 055EDC600BACRA
CONTROLTECHNICS 055EDC601BACRA
CONTROLTECHNIQUES motor NEW + ORIGINAL+ ONE YEAR WARRA55Y
