CONTROL TECHNIQUES電機NTE-212-CONS-0000產品參數
NT |
E = English |
2 = 2? |
12 = 12.5 |
C = MS connector |
O = Unbraked |
N = Incremental encoder 2048 ppr |
S = Low |
00 = Std. configuration |
00 = Std. configuration |
CONTROL TECHNIQUES電機NT系列產品介紹及選型

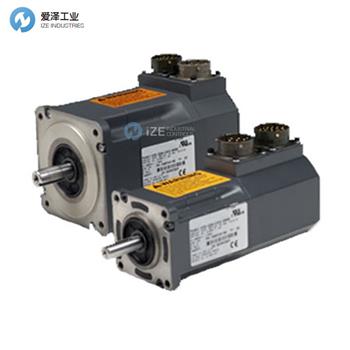

The NT motor is a compact, high performance brushless AC servo motor designed to maximize torque and minimize size. The NT motor uses powerful magnets and is manufactured with a segmented core to maximize stator efficiency.
These motors are available with direct motor-to-drive connector terminations for Control Techniques' brand Unidrive M, Digitax ST and Epsilon EP servo drives – cable lengths up to 20 ft are available.
Key Features
? Torque range: 7.5 to 56 lb-in (0.85 to 6.3 Nm)
? Very low inertia for high acceleration and cycle rates
? English (NEMA 23 or 34) or Metric (IEC- 72-1) flanges
? Available with or without holding brakes
? Direct connect available – no additional cables required!
? Flying-lead cabling option (ex: NTE-320-LONS-0005) with improved ingress protection; flying leads are available with or without MS connectors
? IP65 conformance (IP67S and IP68S optional)
? Standard 2048 encoder
? Installed shaft seal are standard with all motors
? Optional white epoxy food-grade finish
NT電機是緊湊,高性能的無刷交流伺服電機,旨在最大程度地提高扭矩和減小尺寸。 NT電機使用強大的磁體,并采用分段鐵芯制造,以最大程度地提高定子效率。
這些電動機可與Control Techniques品牌的Unidrive M,Digitax ST和Epsilon EP伺服驅動器直接連接,以提供電動機至驅動器的連接器端子-電纜長度可達20 ft。
主要特征
?扭矩范圍:7.5到56磅英寸(0.85到6.3 Nm)
?慣性極低,可實現高加速度和高循環率
?英制(NEMA 23或34)或公制(IEC- 72-1)法蘭
?可帶或不帶抱閘
?可以直接連接–不需要其他電纜!
?具有改進的防護功能的飛線電纜選件(例如:NTE-320-LONS-0005);飛線可帶或不帶MS連接器
?IP65兼容性(IP67S和IP68S可選)
?標準2048編碼器
?安裝的軸封是所有電機的標準配置
?可選的白色環氧食品級面漆
CONTROL TECHNIQUES電機NT系列其他常見型號:
CONTROL TECHNIQUES NTE-355-LBNS-0000
CONTROL TECHNIQUES NTE-355-TBNS-0000
CONTROL TECHNIQUES NTE-345-CBNS-0000
CONTROL TECHNIQUES NTE-345-LBNS-0000
CONTROL TECHNIQUES NTE-345-TBNS-0000
CONTROL TECHNIQUES NTE-355-CBNS-0000
CONTROL TECHNIQUES NTE-212-CBNS-0000
CONTROL TECHNIQUES NTE-212-LBNS-0000
CONTROL TECHNIQUES NTE-212-TBNS-0000
CONTROL TECHNIQUES NTE-212-CONS-0000
CONTROL TECHNIQUES NTE-212-LONS-0000
CONTROL TECHNIQUES NTE-212-TONS-0000
