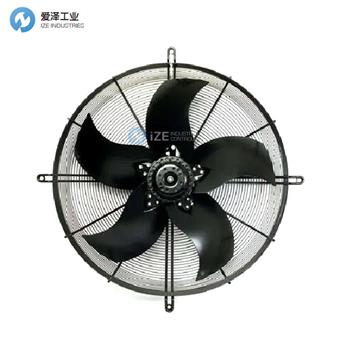

SOLER&PALAU風機HRT/4-500/25-BPN 5700134900技術參數
Characteristics | |
Voltage | 3~400V50Hz |
Motor type | 4 poles IP54 cl. F |
Maximum power absorbed | 0,60/0,38kW |
Maximum absorbed current | 1,2/0,6A |
Is/In | 2,7 |
Air temperature | -40oC<T<+70oC |
Weight | 11,6kg |
Fan code number | 5700134900 |
Motor code number | 0342451002 |
SOLER&PALAU風機Rotorex系列
所有 Rotorex 系列風機均標配異步外轉子電機。所有電機均按照 EN-60034-1 標準制造。標準 Rotorex 型號提供單相 230V +/- 6% 50Hz 或三相 230/400V +/- 6% 或 400V ? +/- 6%、50Hz 電機?？蓱?yīng)要求提供適用于高達 500V 電壓的電機。雖然提供的標準電機以 50Hz 的頻率運行，但大多數電機也可根據要求提供適合以 60Hz 的頻率運行的電機。所有 Rotorex 系列電機均包括按照 EN 60034-1 標準制造的 F 級繞組絕緣。所有電機均配有自動復位熱保護器，該保護器位于電機繞組內。在單相型號中，熱保護器集成在主電機繞組電路中，并具有自動復位功能，而所有三相型號都有外部引線，必須連接到第三方保護裝置（見下面的接線圖）。所有型號都包括一個接地連接，該接地連接內置在電纜線或接線盒中，具體取決于型號配置。配備單相電機和接線盒的型號標配預接線永久分流電容器。
All Rotorex series fans incorporate, as standard, asynchronous external rotor motors. All motors are manufactured in accordance with EN-60034-1 standards. The standard Rotorex models are available with single phase 230V +/- 6% 50Hz or three phase 230/400V +/- 6% or 400V ? +/- 6%, 50Hz motors. Motors suitable for voltages, up to 500V, are available on request. Whilst the standard motors supplied operate at a frequency of 50Hz the majority of motors can also be supplied, on request, as suitable for operating at 60Hz.All Rotorex series motors include Class F winding insulation manufactured in accordance with EN 60034-1 standards. All motors are fitted with automatic reset thermal protector which is located inside the motor winding. On single phase models the thermal protector is integrated within the main motor winding circuit and has automatic reset, where-as all three phase models have external leads which have to be connected to third party protection devices (see wiring diagram below). All models include an earth connection which is built into the cable cord or the terminal box dependant upon the model configuration. Models fitted with a single phase motor and terminal box include a pre-wired permanent- split capacitor as standard.
SOLER&PALAU風機Rotorex系列其他常用型號：
SOLER&PALAU HRB/4-451/20 BPN 5740061600
SOLER&PALAU HRB/4-451/24 BPN 5740071500
SOLER&PALAU HRT/4-450/30 BPN 5700203200
SOLER&PALAU HRT/4-451/20 BPN 5740025100
SOLER&PALAU HRT/4-451/28 BPN 5740029300
SOLER&PALAU HRB/6-450/25 BPN 5700580600
SOLER&PALAU HRB/6-451/24 BPN 5740063200
SOLER&PALAU HRT/4-450/25 BPN 5700224800
SOLER&PALAU HRT/6-450/30 BPN 5700130700
SOLER&PALAU HRT/4-500/25 BPN 5700134900
