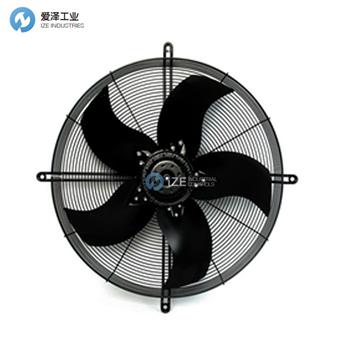

S&P風扇HRB/2-250-BPN技術參數
Characteristics | |
Voltage | 1 230V 50/60Hz |
Motor type | 2 polos IP44 cl.F |
Maximum power absorbed | 135 W |
Maximum absorbed current | 0,6 A |
Capacitor | 4 F/400V |
Is/In | 2,6 |
Air temperature | -40oC<T<+60oC |
Weight | 3,0 kg |
Fan code number | 5750137100 |

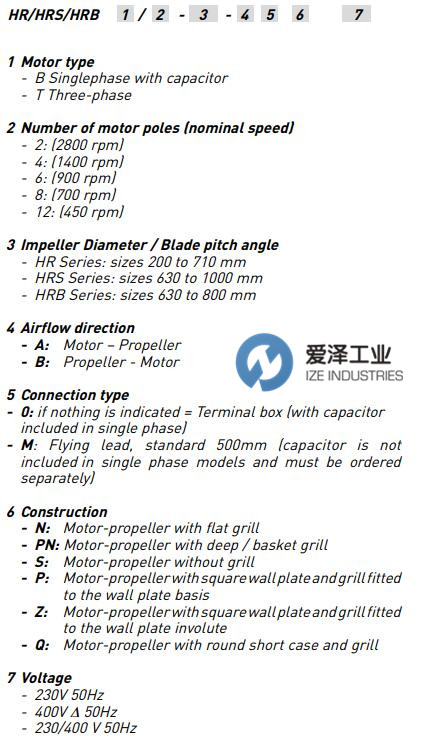

S&P風扇HRB/2-250系列介紹
S&P - THE PRODUCTS ELECTRICAL CHARACTERISTICS
All Rotorex series fans incorporate, as standard, asynchronous external rotor motors. All motors are manufactured in accordance with EN-60034-1 standards. The standard Rotorex models are available with single phase 230V +/- 6% 50Hz or three phase 230/400V +/- 6% or 400V ? +/- 6%, 50Hz motors. Motors suitable for voltages, up to 500V, are available on request. Whilst the standard motors supplied operate at a frequency of 50Hz the majority of motors can also be supplied, on request, as suitable for operating at 60Hz – please enquire.All Rotorex series motors include Class F winding insulation manufactured in accordance with EN 60034-1 standards. All motors are fitted with automaticreset thermal protector which is located inside the motor winding. On single phase models the thermal protector is integrated within the main motor winding circuit and has automatic reset, where-as all three phase models have external leads which have to be connected to third party protection devices (see wiring diagram below). All models include an earth connection which is built into the cable cord or the terminal box dependant upon the model configuration. Models fitted with a single phase motor and terminal box include a pre-wired permanent- split capacitor as standard.
S＆P-產品電氣特性
所有Rotorex系列風扇均標配有異步外部轉子電動機。所有電機均按照EN-60034-1標準制造。標準Rotorex型號可提供單相230V +/- 6％50Hz或三相230 / 400V +/- 6％或400V ? +/- 6％，50Hz電機?？蓱?yīng)要求提供適用于最高500V電壓的電動機。盡管提供的標準電動機以50Hz的頻率運行，但也可應要求提供大多數電動機，以適合以60Hz的頻率運行–請詢問。所有Rotorex系列電動機都包括符合EN 60034-1的F級繞組絕緣標準。所有電機都裝有位于電機繞組內部的自動復位熱保護器。在單相模型上，熱保護器集成在主電動機繞組電路中并具有自動復位功能，因為所有三相模型均具有必須連接到第三方保護裝置的外部引線（請參見下面的接線圖）。所有型號都包括接地連接，該接地連接內置在電纜線或接線盒中，具體取決于型號配置。裝有單相電動機和接線盒的型號包括一個預接線的永久分流電容器作為標準配置。

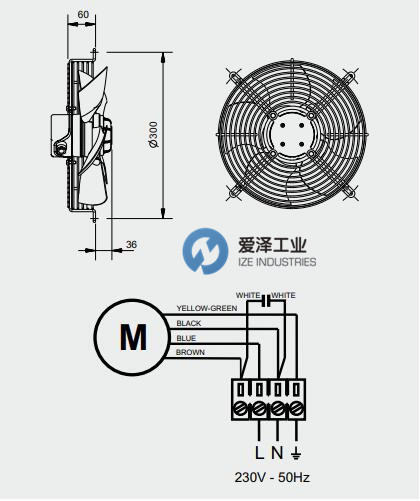

S&P風扇HRB/2-250-BPN尺寸圖及選型
S&P風扇HRB系列其他常用型號：
S&P HRB/2-250-BMPN
S&P HRB/2-250-BPN
S&P HRB/4-250-BMPN
S&P HRT/2-250-AMPN
S&P HRB/2-200 BPN
S&P HRB/4-200 BPN
S&P HRB/2-250 BPN
S&P HRB/4-250 BPN
S&P HRB/4-300 BPN
S&P HRB/6-300 BPN
S&P HRB/4-315 BPN
S&P HRB/6-315 BPN
S&P HRB/4-350 BPN
S&P HRB/4-400 BPN
S&P HRB/6-400 BPN
