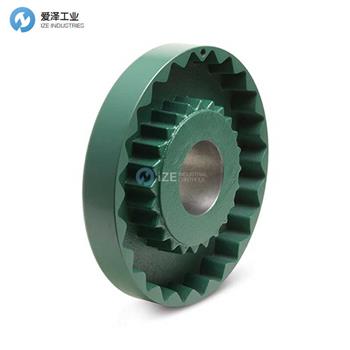

TB WOODS聯軸器9SC35技術參數
Technical Specifications | |
Product Family | Sure-Flex Type SC Spacer Flange |
Material | High Strength Cast Iron |
Size | 9 |
Rated Torque | 2,340 lb-in with EPDM or Neoprene sleeve; 7,200 lb-in with Hytrel sleeve |
Max RPM | 3,750 RPM |
Weight | 4.1 lbs |
Max Angular Gap Misalignment | 0.109 in with EPDM/Neoprene Sleeves and 0.028 in with Hytrel Sleeves |
Max Angular Misalignment | 1° with EPDM/Neoprene Sleeves and 1/4° with Hytrel Sleeves |
Max Parallel Misalignment | 0.025 in with EPDM/Neoprene Sleeves and 0.017 in with Hytrel Sleeves |
Component WR2 | 0.171 lb-ft2 |
Distance Between Shafts | 3 1/2 in |
Hub | Spacer Flange |
Spacer Hub Required | 9SCH x bore Spacer Hub |
(C) Length Through Bore | 1 11/16 in |
(D) Outside Diameter | 6 7/20 in |
(E) SF Hub Length | 1/16 in |
(H) SF Hub Diameter | 3 5/8 in |
(T) SF Flange Length | 1 1/32 in |
TB WOODS聯軸器Sure-Flex系列介紹
使用 Sure-Flex 聯軸器，無需潤滑和維護。因此，這些聯軸器可為各種應用提供清潔、可靠和安靜的性能。
With Sure-Flex couplings, the need for lubrication and maintenance is eliminated. As a result, these couplings provide clean, dependable, and quiet performance for a variety of applications.
TB WOODS聯軸器其他常用型號：
TB WOODS 5SC35
TB WOODS 6SC35
TB WOODS 6SC44
TB WOODS 6SC50
TB WOODS 7SC44
TB WOODS 7SC50
TB WOODS 8SC35
TB WOODS 8SC35-10
TB WOODS 8SC44
TB WOODS 8SC50
TB WOODS 8SC50-10
TB WOODS 9SC35
TB WOODS 9SC44
TB WOODS 9SC50
TB WOODS 9SC50-11
TB WOODS 9SC70-11
TB WOODS 9SC78-11
TB WOODS 10SC78-13
TB WOODS 10SC70-13
TB WOODS 10SC100-13
TB WOODS Couplings NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TB WOODS聯軸器9SC35的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TB WOODS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TB WOODS聯軸器9SC35技術參數及介紹
