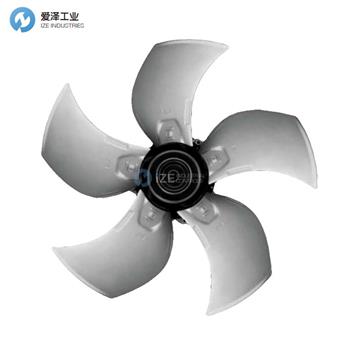

EBM軸流風扇M3G084-DF規格描述
Technical description | |
Weight | 3.9 kg |
Motor size | 84 |
Size | 350 mm |
Rotor surface | Painted black |
Terminal box material | PP plastic |
Electronics housing material | Die-cast aluminum, painted black |
Blade material | Press-fitted, painted sheet steel blank, sprayed with PP plastic |
Number of blades | 5 |
Airflow direction | A |
Direction of rotation | Clockwise, viewed toward rotor |
Degree of protection | IP55 |
Insulation class | "F" |
Moisture (F) / Environmental (H) protection class | H2+A |
Max. permitted ambient temp. for motor (transport/storage) | +80 °C |
Min. permitted ambient temp. for motor (transport/storage) | -40 °C |
Installation position | Shaft horizontal or rotor on top; rotor on bottom on request |
Condensation drainage holes | None |
Mode | S1 |
Motor bearing | Ball bearing |
Technical features | - Output 10 VDC, max. 10 mA - Operation and alarm display - Alarm relay - Integrated PID controller - Power limiter - Motor current limitation - PFC, active - RS-485 MODBUS-RTU - Soft start - Control input 10-0 VDC / PWM - Control interface with SELV potential safely disconnected from the mains - Thermal overload protection for electronics/motor - Line undervoltage / phase failure detection |
Touch current according to IEC 60990 (measuring circuit Fig. 4, TN system) | <= 3,5 mA |
Electrical hookup | Terminal box |
Motor protection | Thermal overload protector (TOP) internally connected |
Protection class | I (with customer connection of protective earth) |
Conformity with standards | EN 61800-5-1 / CE |
Approval | UL 1004-7 + 60730-1 / EAC / CSA C22.2 No. 77 +CAN/CSA-E60730-1 |
EBM軸流風扇M3G084-DF產品介紹
軸流風機的突出特點是安裝深度小，噪音低，效率高。軸流風扇與ebm-papst面向未來的EC技術GreenTech結合使用，成為智能的“節能奇跡”，適用于極其廣泛的應用。
The outstanding features of axial fans are their low installation depth, low noise level and outstanding efficiency. Combined with GreenTech, the future-oriented EC Technology from ebm-papst, the axial fans become intelligent "energy-saving wonders" for an extremely wide range of applications.
EBM 軸流風扇M3G系列其他型號：
EBM M3G084-DF
EBM M3G055-CF
EBM M3G055-CF
EBM M3G055-DF
EBM M3G074-CF
EBM M3G055-DF
EBM M3G084-FA
EBM M3G150-IF
EBM axial fan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EBM軸流風扇M3G084-DF的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for EBM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
EBM軸流風扇M3G084-DF產品參數
