DOMEL無刷直流電機497.3.267 & 265系列產品參數
| ||||||||||||

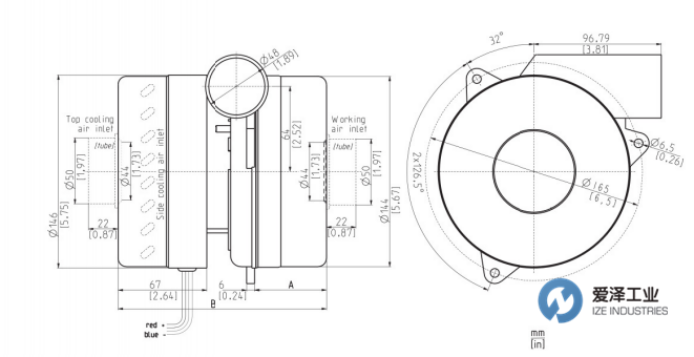

Code | Curve | A | B | P1 | Volt | Sealed Vacuum | Max air flow | Mass | ||||
[mm] | [in] | [mm] | [in] | [W] | [V] | [kPa] | [inH20] | [l/s] | [CFM] | [kg] | ||
497.3.267 10 | 1E36 | 37 | 1,42 | 141 | 5,55 | 950 | 36 | 14 | 56,26 | 55,70 | 118,02 | 2,1 |
497.3.267 8 | 2E36 | 62 | 2,13 | 166 | 6,54 | 1000 | 36 | 20,5 | B2,3B | 47,22 | 100,05 | 2,21 |
497.3.267-7 | 2E24 | 62 | 2,13 | 166 | 6,54 | 700 | 24 | 15,21 | 53,85 | 42,77 | 90,62 | 2,21 |
497.3 .265 851 | 3P36 | 81 | 3,19 | 185 | 7,28 | 1000 | 36 | 25,4 | 102,07 | 38,88 | 82,38 | 2,5 |
497.3.265 853 | 3P52 | 81 | 3,19 | 185 | 7,28 | 1200 | 52 | 26,9 | 108,10 | 42,78 | 90,65 | 2,5 |
DOMEL無刷直流電機497.3.267 & 265系列產品介紹
3-無刷鼓風機/泵代碼-497.3.265和497.3.267(低壓)
145毫米(5,7英寸)-低壓(24 V DC,36 V DC,52 V DC)
地板保養中使用的特殊密封系統旨在保護軸承不受污染的空氣和濕氣的影響(497.3.267)。對于地板護理中的應用,鼓風機和電機部件之間開發了防水密封。鼓風機還可以進行防靜電和防腐蝕保護,并具有一級,二級或三級配置。智能驅動器適合于再生燃料電池的空氣供應。除此之外,所有主要技術特征都與其他鼓風機相同(堵轉保護,熱保護,軟啟動等)。

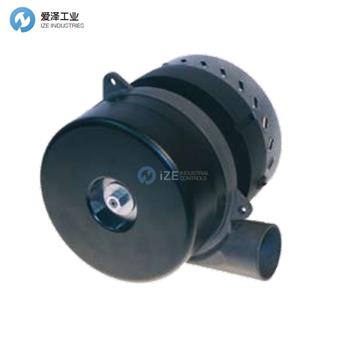

3-Brushless blower/pump CODE - 497.3.265 & 497.3.267 (low voltage)
145 mm (5,7”) - Low Voltage (24 V DC, 36 V DC, 52 V DC)
Special sealing system used on floor care was designed to protect a bearing against an influence of polluted air and moisture (497.3.267). For applications in floor care we have developed a water proofed sealing between blower and motor parts. Blowers could be also antistatic and anticorrosion protected and are available in one-, two- or three-stage configuration. Intelligent drive is adapted to regenerate air supply of fuel cells. In addition to that also all main technical features are the same like in other blowers (blocked rotor protection, thermal protection, soft start, etc.).
DOMEL無刷直流電機497.3.267 & 265系列其他常見型號:
DOMEL 497.3.267 10
DOMEL 497.3.267 8
DOMEL 497.3.267-7
DOMEL 497.3.265 851
DOMEL 497.3.265 853
DOMEL 497.3.270-778
DOMEL Brushless DC motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于DOMEL無刷直流電機497.3.267 & 265的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for DOMEL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
DOMEL無刷直流電機497.3.267 & 265產品參數
