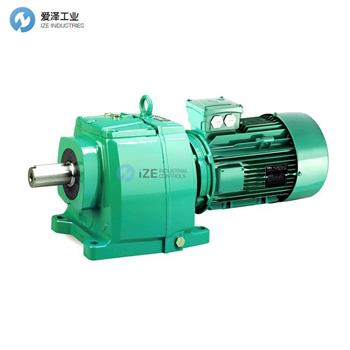

LEROY-SOMER減速箱Cb3032 8.59 S S B3 AP技術參數
Motor definition | |
Gearbox input power (kW) | Gearbox input speed (min-1) |
Gearbox definition | |
Protection type | - |
Fixing form | S |
Gearbox series | Cb |
Position of the fixation | - |
Gearbox size | 30 |
Operation position | B3 |
Capacity code | 3 |
Low speed shaft | S |
Number of stages code | 2 |
Input interface | AP |
Exact ratio | 8.59 |
PreMounting | L |
Common definitions | |
Paint shade | RAL6000 Finish - |
Paint system | C3L (1 x acrylic polyurethane finish (50μm +/- 20%)) |
Gearbox mechanical interface | |
Dimension of gearbox output flange | - |
Input type | AP |
Diameter output shaft (mm) | 20j6 |
Gearbox input flange | FF155 |
Lenght output shaft (mm) | 40 |
Diameter gearbox input shaft | |
Shaft material type | Steel shaft |
Lenght gearbox input shaft (mm) | - |
Nuance of shaft material | - |
Diameter AP shaft (mm) | 14j6 |
Lenght AP shaft (mm) | 30 |
LEROY-SOMER減速箱CB系列介紹
優點
緊湊的模塊化安裝
多種安裝解決方案
低速軸和軸承,足以承受高徑向載荷
整體式羅紋鑄鐵框架設計,可確保最大程度的抗沖擊和振動
Advantages
Compact modular mounting
Wide variety of mounting solutions
Low speed shaft and bearings large enough to withstand high radial loads
Monobloc ribbed cast iron frame designed to ensure maximum shock and vibration resistance
LEROY-SOMER減速箱其他常用型號:
LEROY-SOMER Cb3032 8.59 S S B3 AP
LEROY SOMER CB 3333 SB 3
LEROY SOMER Cb3833
LEROY SOMER Cb3733
LEROY SOMER Cb3633
LEROY SOMER Cb3533
LEROY SOMER Cb3233
LEROY SOMER Cb3333
LEROY SOMER CB3433
LEROY SOMER Cb3133
LEROY SOMER Cb3033
LEROY SOMER Cb3032
