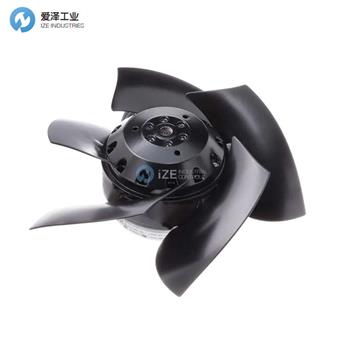

EBM PAPST風扇A2D210-AB10-05技術參數
Technical description | |
Weight | 1.62 kg |
Size | 210 mm |
Motor size | 68 |
Rotor surface | Painted black |
Blade material | Sheet steel, painted black |
Number of blades | 5 |
Airflow direction | V |
Direction of rotation | Counterclockwise, viewed toward rotor |
Degree of protection | IP44; installation- and position-dependent as per EN 60034-5 |
Insulation class | "F" |
Moisture (F) / Environmental (H) protection class | H1+ |
Installation position | Shaft horizontal or rotor on bottom; rotor on top on request |
Condensation drainage holes | On rotor side |
Mode | S1 |
Motor bearing | Ball bearing |
Touch current according to IEC 60990 | < 0.75 mA |
with cable | Lateral |
Protection class | I (with customer connection of protective earth) |
Conformity with standards | EN 60335-1; CE; UKCA |
Approval | CCC; UL 1004-1; EAC; CSA C22.2 No. 100 |
EBM PAPST風扇A2D系列其他常用型號：
EBMPAPST A2D250-AA02-01
EBMPAPST A2D170-AA04-02
EBMPAPST A2D210-AB1005
EBMPAPST A2D250-AH10
EBMPAPST A2D200-AA02-01
EBMPAPST A2D200-AA04-41
EBMPAPST A2D185-AA02-02
EBMPAPST A2D210-AB10-05
