SITI蝸輪減速機MU系列產品參數
Specifications | |
Specific weight | 1,36 gr/cm3 |
Water absorption 24h | 0,6-0,9 % |
Resistance to tensile stress | 160 MPa |
Modulus of elasticity to tensile stress | 9700 MPa |
Maximum stretch | 3,5 % |
Modulus of elasticity to bending stress | 9000 MPa |
IZOD Impact resistance c.i 6,4 mm | 90 J/m |
ROCKWELL hardness | 115 (L) |
Heat deflection temperature HDT 1,82 N/mm2 | 245 °C |
VICAT 49N softening temperature | 255 °C |
Coefficient of linear thermal expan- sion | 3 x 10-5 /°K |
Flammability | HB (3,2 mm) |

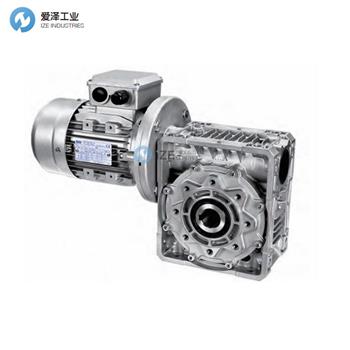

SITI蝸輪減速機MU90 30/1 PAM28/250產品介紹
從U 40尺寸到U 110尺寸的U-MU系列蝸輪箱的外殼采用壓鑄鋁合金制成。僅在U-MU 30尺寸上,外殼和電機連接法蘭由尼龍PA 6.6 GF 30(30%玻璃纖維增強聚合物)制成,以便使其能夠在惡劣的環境中使用(化學和食品工業以及航海應用),并提供出色的性價比。一般而言,該材料具有很高的耐磨性和抗沖擊性,出色的機械性能(可在溫度變化時保持穩定),高動態應力強度以及出色的尺寸穩定性。 此外,這種聚合物被證明對潤滑劑,脂肪,油,燃料,溶劑和清潔劑,鹽水溶液和稀酸具有抵抗力。
Wormgearboxes of the series U-MU from the size U 40 up to the size U 110 included, have the housing made in pressure die casting aluminium alloy. Only on the size U-MU 30, housing and motor connection flanges are made of nylon PA 6.6 GF 30 (30% glass fiber reinforced polymer),in order to enable their use in aggressive environments (chemical and food industry as well as nautical applications), and to offer an excellent price-to-quality ratio. Generally speaking,the material has a high abrasion and impact resistance, remarkable mechanical properties that keep steady at temperature changes, a high strength to dynamic stresses as well as an excellent dimensional stability. Moreover, this polymer proves resistant to lubricants, fats, oils,fuels, solvents and detergents, saline solutions and diluted acids.
SITI蝸輪減速機MU系列其他常見系列:
SITI MU30
SITI MU40
SITI MU50
SITI MU63
SITI MU75
SITI MU90
SITI MU110
SITI MU90 30/1 PAM28/250
SITI GEARED MOTORS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SITI蝸輪減速機MU90 30/1 PAM28/250的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for SITI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
SITI蝸輪減速機MU系列MU90 30/1 PAM28/250產品參數
