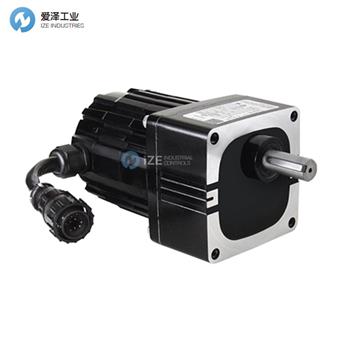

BODINE ELECTRIC電機34B-WX系列技術參數
SPECIFICATIONS | |
Voltage (DC) | 24 |
Speed (rpm) | 123 |
Motor HP | 1/5 |
Current (Amps) | 9.0 |
Gear Ratio | 20 |
Rated Torque (lb-in) | 77 |
Radial Load (lbs) | 60 |
Length XH (inch) | 6.5 |
Weight (lbs) | 9 |
Product Type | 34B3FEBL-WX2 |
Accessory Shaft | YES |
HPDecimal | 0.2 |
Connection Diagram | 7410268 |
BODINE ELECTRIC電機34B-WX系列介紹尺寸圖
應用信息
無刷直流齒輪電動機需要速度控制。
所有型號的額定環境溫度均為+ 40°C。
正面安裝是標準配置。
帶附件軸的型號非常適合安裝外部編碼器或制動器。
130 VDC型號通過連接器端接。24 VDC型號使用快速連接器。
Application Information
Brushless DC gearmotors require a speed control.
All models are rated for a +40°C ambient.
Face mount is standard.
Models with accessory shaft are ideal for mounting external encoders or brakes.
130 VDC models are terminated with a connector. 24 VDC models use quick connectors.
BODINE ELECTRIC電機34B-WX系列其他常見型號:
BODINE ELECTRIC 34B3BEBL-WX2
BODINE ELECTRIC 34B3BEBL-WX3
BODINE ELECTRIC 34B3BEBL-WX4
BODINE ELECTRIC 34B3FEBL-WX2
BODINE ELECTRIC 34B3FEBL-WX3
BODINE ELECTRIC 34B3FEBL-WX4
BODINE ELECTRIC Geared motor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BODINE ELECTRIC電機34B3FEBL-WX2的疑問,請隨時與我們電聯,(021-3100 6702),我們將盡全力解決您的問題。
If you have any question for BODINE ELECTRIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

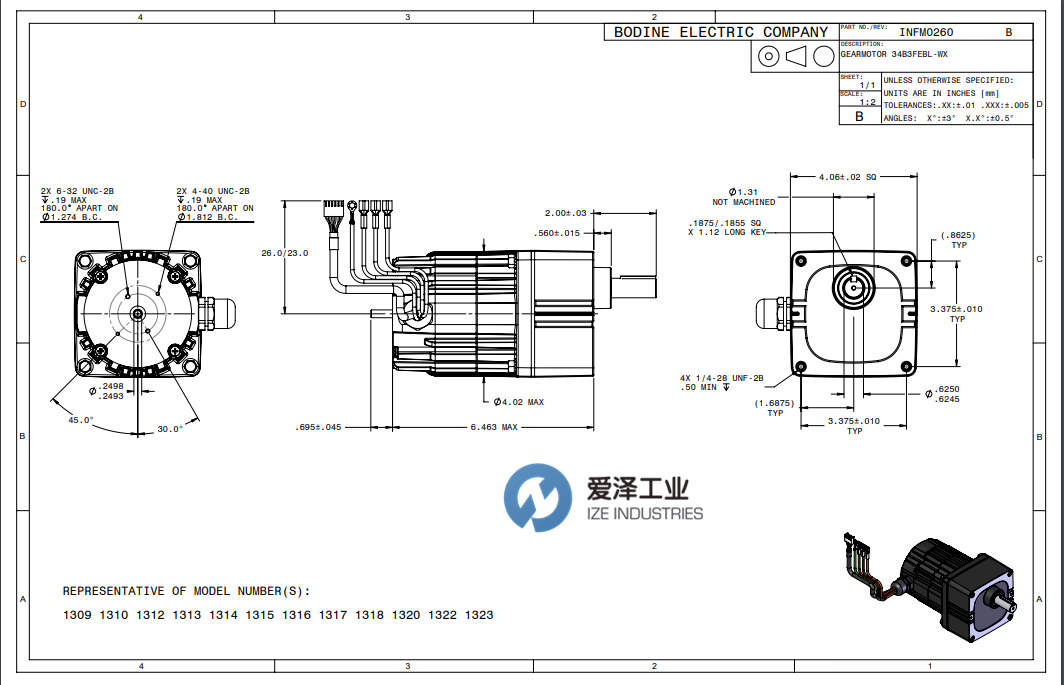

BODINE ELECTRIC電機34B3FEBL-WX2參數及尺寸圖
