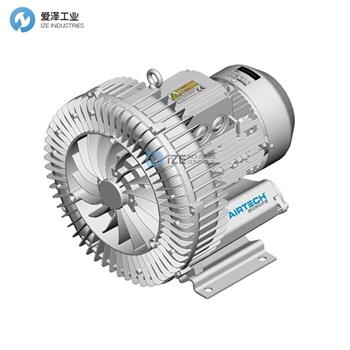

AIRTECH風機ASC0210-2ST301-6技術參數
Type | ASC0210-2ST301-6 | |
Motor Protection | Bimetal Protection | |
Certificate | UL CSA | |
Weight | 40 kg | |
Permissible Ambient Temperature | -25°...40°C | |
Permissible Entry Temperature | -25°...40°C | |
Type of protection | IP55 | |
Max. Installation height | 1000 m | |
Nom. Mot. Power (kW) | 3 | 3.45 |
Frequency (Hz) | 50 | 60 |
Current (A) | 12.5 Δ / 7.20 Y | 12.6 Δ / 7.30 Y |
Voltage (V) | 200-240 Δ / 345-415 Y | 220-275 Δ / 380-480 Y |
Volume Flow (m3/h) | 210 | 250 |
Diff. Pressur (mbar) | -340/410 | -380/360 |
Sound Press. Level dB(A) | 72 | 74 |
AIRTECH風機ASC系列介紹
AIRTECH ASC side channel blowers are dynamic blowers that transfer kinetic energy to the medium agent by contactless rotating impellers. The gas is drawn in through a built-in silencer and then the energy transfer is taking place repeatedly in the blower housing. At the discharge side the gas is wiped off at the interrupter and discharged through a second built-in silencer. The energy transfer is achieved in single-stage version as well as two-stage version with two separate impellers for higher differential pressures.
ASC側通道鼓風機是動態鼓風機，可通過非接觸式旋轉葉輪將動能傳遞至介質。氣體通過內置的消音器吸入，然后在鼓風機外殼中反復進行能量傳輸。在排放側，氣體在滅弧室被清除，并通過第二個內置消音器排放。能量傳遞既可以在單級版本中進行，也可以在兩級版本中通過兩個獨立的葉輪實現，以實現更高的壓差。
AIRTECH風機ASC系列其他常用型號：
AIRTECH ASC0080-1MT250-6
AIRTECH ASC0080-1MA370-1
AIRTECH ASC0080-1MS370-5
AIRTECH ASC0080-1MT400-6
AIRTECH ASC0210-2ST301-6
AIRTECH Fan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于AIRTECH風機ASC0210-2ST301-6的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for AIRTECH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
