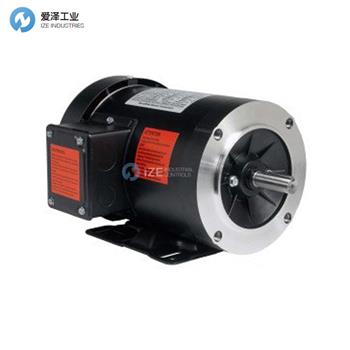

WORLDWIDE ELECTRIC電機NAT34-18-56CB技術參數
APPROXIMATE WEIGHT (LBS) | 22 |
DEGREE OF PROTECTION | IP43 |
ENCLOSURE TYPE | TEFC |
FULL LOAD AMPS | 1.3 |
FL EFFICIENCY (%) | 73 |
FRAME SIZE | 56C |
FREQUENCY | 60/50 HZ |
HORSEPOWER | 0.75 |
INSULATION CLASS | Class F |
MOUNTING TYPE | C-Face with Removable Base |
PHASE | Three-Phase |
RPM | 1800 |
SERVICE FACTOR | 1.15 |
VOLTAGE | 230/460 |
WORLDWIDE ELECTRIC電機NAT34-18-56CB產品介紹
特征
? 230/460 V
? 全封閉風扇冷卻 (TEFC) 外殼
? IP43 防護等級
? 1.15 SF
? F 級絕緣
? 超高效率 (1-3 HP)
? 真空壓力浸漬 (VPI) 系統
? 轉子涂有防銹膜
? 改進的驅動端軸密封可保護驅動端軸承免受濕氣和污染
? 逆變器額定值，4:1 CT / 10:1 VT
? 適用于 50 Hz，1.0 SF
FEATURES
? 230/460 Volt
? Totally Enclosed Fan Cooled (TEFC) Enclosure
? IP43 Protection
? 1.15 SF
? Class F Insulation
? Premium Efficiency (1-3 HP)
? Vacuum Pressure Impregnation (VPI) System
? Anti-Rust Film Applied to Rotor
?Improved Shaft Seal on Drive-End Protects Drive-End Bearing from Moisture and Contaminants
? Inverter Rated, 4:1 CT / 10:1 VT
? Suitable for 50 Hz with 1.0 SF
