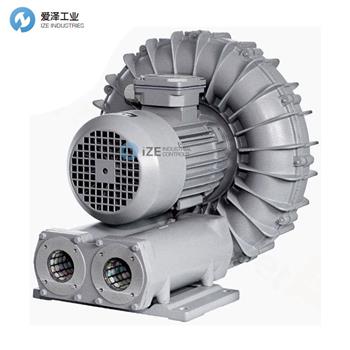

VENTURE風機SC30C300T技術參數
Max. volume flow | 320 m3/h |
Maximum pressure | 30000 Pa |
Rotation speed | 2870 rpm |
Phase | 3 |
Rated voltage | 400 V |
Rated power | 3000 W |
Rated current | 6.3 A |
Rated frequency | 50 Hz |
Diameter | 55 mm |
Weight | 40 kg |
Motor type | AC |
Speed number | 2 |
Motor protection class | IP55 |
Min. operating temperature | -20 °C |
Max. operating temperature | 40 °C |
Max. medium temperature | 60 °C |
Sound pressure level | 78 dB(A) |
Distance | 3 m |
VENTURE風機SC系列介紹
側通道鼓風機用于氣動輸送。 典型應用：
氣動運輸
印刷機、氣動升降機、具有極高粉塵分離度的多級過濾裝置
工業吸塵器、水池、生物污水處理廠曝氣、電鍍廠等。
用于非腐蝕性和非爆炸性氣體的無油運輸
Side-channel blowers are used in pneumatic transport. Typical applications:
pneumatic transport
graphic machines, pneumatic lifts, multi-stage filtration devices with a very high degree of dust separation
industrial vacuum cleaners, pools, aeration in biological sewage treatment plants, electroplating plants, etc.
for oil-free transport of non-aggressive and non-explosive gases
帶直接驅動的側通道鼓風機
葉輪由鋁合金制成，根據 ISO 1940-1 進行動態平衡
外殼采用鋁合金鑄造
適用于水平或垂直位置工作的鼓風機
鼓風機的標準顏色為灰色 RAL 7042
輸送介質最高溫度60℃
環境溫度范圍從 -20°C 到 +40°C
side-channel blower with direct drive
the impeller is made of aluminum alloy, dynamically balanced according to ISO 1940-1
the housing is cast in aluminum alloy
blower adapted to work in horizontal or vertical position
standard color of the blower is gray RAL 7042
maximum temperature of the transported medium is 60°C
ambient temperature range from -20°C to +40°C
VENTURE風機SC系列其他常用型號：
VENTURE SC10A 037T
VENTURE SC10A 055T
VENTURE SC10C 075T
VENTURE SC20A 110T
VENTURE SC20A 150T
VENTURE SC20C 110T
VENTURE SC20C 150T
VENTURE SC30A 220T
VENTURE SC30A 300T
VENTURE SC30C 220T
VENTURE SC30C 220T
VENTURE SC30C 300T
VENTURE FANS NEW + ORIGINAL+ ONE YEAR WARRANTY
