EBMPAPST風機R2E250-RB06-01規格描述
Type | R2E250-RB06-01 |
Motor | M2E074-EI |
Mass | 4 kg |
Size | 250 mm |
Surface of rotor | Coated in black |
Material of impeller | PA plastic |
Number of blades | 7 |
Direction of rotation | Clockwise, seen on rotor |
Type of protection | IP 44; Depending on installation and position as per EN 60034-5 |
Insulation class | "F" |
Humidity class | F1-2 |
Max. permissible ambient motor temp. (transp./ storage) | + 80 °C |
Min. permissible ambient motor temp. (transp./storage) | - 40 °C |
Mounting position | Shaft horizontal or rotor on bottom; rotor on top on request |
Condensate discharge holes | Rotor-side |
Operation mode | S1 |
Motor bearing | Ball bearing |
Touch current acc. IEC 60990 (measuring network Fig. 4, TN system) | < 0.75 mA |
Motor protection | Thermal overload protector (TOP) wired internally |
Cable exit | Variable |
Protection class | I (if protective earth is connected by customer) |
Product conforming to standard | EN 60335-1; CE |
Approval | CCC; EAC |

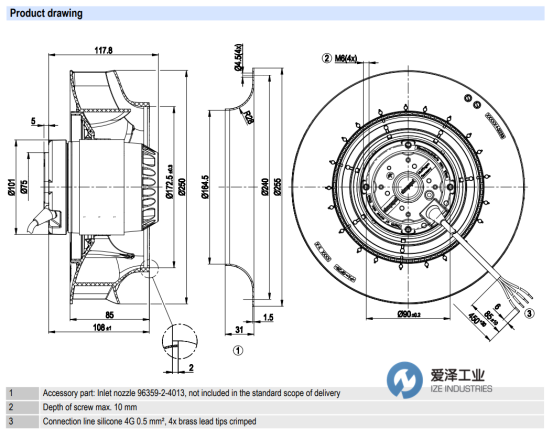

EBMPAPST風機R2E250-RB06-01外觀尺寸圖
愛澤工業(IZE_INDUSTRIES)特價經銷、常用EBMPAPST型號:
EBMPAPST R2E250-RA50-01
EBMPAPST R2E250-RB06-01
EBMPAPST R2E250-AS47-09
EBMPAPST R2E250-RA50-09
EBMPAPST R2E250-RB02-11
EBMPAPST R2E250-AT02-11
EBMPAPST R2E250-AT06-12
EBMPAPST R2E250-AW50-05
EBMPAPST R2E250-RB06-01
EBMPAPST R2E250-AS47-05
EBMPAPST R2E250-AU51-05
EBMPAPST R2E250-AV65-01
EBMPAPST R2E250-AL03-10
EBMPAPST R2E250-AS47-26
EBMPAPST R2E250-AS50-39
EBMPAPST R2E250-AL05-16
EBMPAPST fan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EBMPAPST風機R2E250-RB06-01的疑問,請隨時致電我們,愛澤工業(021-31006702)。我們將盡全力解決您的問題。
If you have any question for EBMPAPST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
EBMPAPST風機R2E250-RB06-01技術數據
