VIMEC風機EVF710/B技術參數

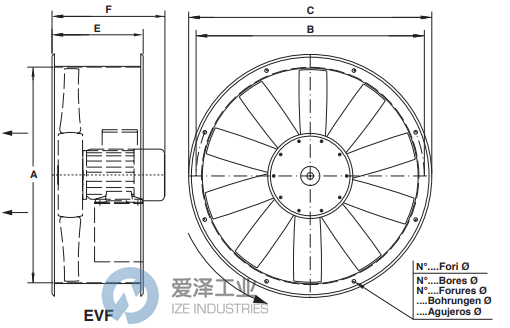

Type | |
Fan | EVF 710/B |
Motor | 90 L6 |
A | 710 mm |
B | 751 mm |
C | 800 mm |
E | 300 mm |
F | 375 mm |
N. | 8 mm |
? | 12 mm |
Weight | 51 Kg |

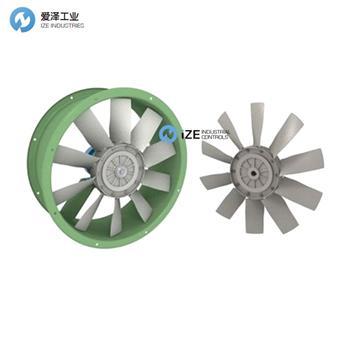

VIMEC風機EVF系列介紹
帶翼型葉片的輕合金壓鑄葉輪軸流風機
雙法蘭管道滾筒。
直聯電機。
工作溫度:- 20 °C ~ + 60 °C。
特性:V = 1.320÷120.000 m 3 /h | 鉑 = 4÷100 千克/米2
ErP:這些風扇受指令 2009/125/EC 保護
用途:EVF系列螺旋風機適用于鑄造廠、水泥廠、造紙廠和細木工廠抽吸煙霧以及污染、多塵和潮濕的空氣。用于局部房間的通風,用于干燥紙張、羊毛、意大利面瓷磚,應用于散熱器、單元加熱器、冷卻塔等,通常用于需要低壓輸送大量空氣的地方。
AXIAL-FLOW FAN WITH LIGHT ALLOY DIE-CAST IMPELLER WITH WING-PROFILE BLADES
Double flange ducting drum.
Directly coupled motor.
Minimum working temperature - 20 °C, Maximum + 60 °C.
Characteristics: V = 1.320÷120.000 m3/h | Pt = 4÷100 kg/m2
ErP: these fans are covered by Directive 2009/125/EC
Use: the helical fans, series EVF are suitable for sucking in smokes, as well as vitiated, dusty and wet air in the foundries, cement factories, paper factories and joinery works.
For the aeration of local rooms, for drying paper, wool, pasta tiles in the application to radiators, unit heaters, cooling towers, etc. and generally where it is necessary to transport big volumes of air with low pressures.
VIMEC風機EVF系列其他常用型號:
VIMEC EVF500/A
VIMEC EVF500/B
VIMEC EVF560/A
VIMEC EVF560/B
VIMEC EVF630/A
VIMEC EVF630/B
VIMEC EVF630/C
VIMEC EVF710/A
VIMEC EVF710/B
VIMEC EVF710/C
VIMEC EVF710/D
VIMEC EVF710/E
VIMEC EVF710/F
VIMEC EVF800/A
VIMEC EVF800/B
VIMEC EVF800/C
VIMEC EVF800/D
VIMEC EVF800/E
VIMEC EVF800/F
VIMEC EVF800/G
VIMEC EVF900/A
VIMEC EVF900/B
VIMEC EVF900/C
VIMEC EVF900/D
VIMEC FUN NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VIMEC風機EVF710/B的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for VIMEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
VIMEC風機EVF710/B技術參數及介紹
