EBMPAPST風機4650N規格描述
Technical description | |
Weight | 0.550 kg |
Dimensions | 119 x 119 x 38 mm |
Impeller material | Sheet steel, painted black |
Housing material | Die-cast aluminum |
Airflow direction | Intake over struts |
Direction of rotation | Clockwise, viewed toward rotor |
Bearing | Sintec sleeve bearing |
Service life L10 at 40 °C | 37500 h |
Service life L10 at maximum temperature | 27500 h |
Cable | 2 flat plugs 3.0 x 0.5 mm. Housing with grounding lugs with M4 and UNC thread. |
Motor protection | Protected from overload by impedance protection |
Approval | VDE, CSA, UL, CE |
Option | Versions with reinforced mounting flanges and exposed external leads. |

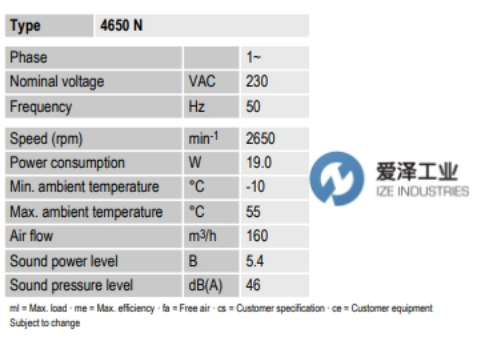

EBMPAPST風機4650N技術數據

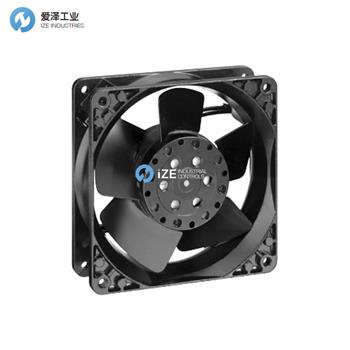

交流軸流風機,尺寸為119 mm(長度)x38 mm(寬度)x119 mm(高度),電壓:230VAC,頻率:50Hz,額定功率:19W,風扇轉速2650 RPM,聲級:46 dBA,并有滾珠軸承。它的溫度范圍為-10°C至55°C
EBMPAPST風機其他型號:
EBMPAPST 4600N
EBMPAPST 4600TZ
EBMPAPST 4600Z
EBMPAPST 4606N
EBMPAPST 4606TA
EBMPAPST 4606TZ
EBMPAPST 4606Z
EBMPAPST 4650N
EBMPAPST 4650TA
EBMPAPST 4650TZ
EBMPAPST 4650Z
EBMPAPST 4656N
EBMPAPST 4656TA
EBMPAPST 4656TZ
EBMPAPST 4656Z
EBMPAPST fan NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于EBMPAPST風機4650N的疑問,請隨時致電我們,愛澤工業(021-31006702)。我們將盡全力解決您的問題。
If you have any question for EBMPAPST products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com/browse our website: jjxdch.cn.
