OEMER電機QL系列參數介紹
Motor | AC 3-phase square frame asynchronous motor |
Execution | High power induction motor |
Shaft height | 80, 100, 132, 160, 180, 225, 280, 355mm |
Power | 0,55…1.115kW |
Torque | 7…6.700Nm |
Weight | 20…3100kg |
Nr. of poles | 4 , 6 1) |
Base speed | 500, 580, 750, 1000, 1250, 1500, 1800, 2200, 2600rpm |
Supply voltage | 330 - 400…460Vac - 690Vac on request only for size 280/355 |
Connection | Star, delta, delta/star, 2) |
Electrical connection | Nr.3 or 6 terminals, (delta/star connection available only for |
Insulation class | F, temperature rise cl.F |
Thermal protectors | PTO (klixon) as standard, PTC*, KTY84-130*, PT100* on request |
Mounting construction | B3, B5, B35, + other vertical and horizontal mountings |
Protection degree | HQL: IP 54, IP 55* - HQLa: IP 23S – HQLaW IP 55 |
Type of cooling | HQL size 80…160: IC 416 axial fan 1-ph 230V 50/60Hz |
Vibration degree | R, S* |
Balancing method | Half key, full* key or without* key on request |
Ambient temperature | -20…+40°C |
Color | RAL 7037 (grey) |
Stator material | Magnetic steel |
Covers material | Frame 80…160 aluminium, frame 180…355 cast iron |
Flange material | Frame 80…160 aluminium, frame 180…355 cast iron |
Shaft | Steel C45 – 39NiCrMo on request |
Terminal box position | Standard position top mounted, side* mounted on request |
Options available | Encoder, PTC, KTY84-130, PT100, radial fan, parking brake, |
Availability | 1500rpm B35 normally ready in stock |
Delivery time | From ready in stock up to 12 weeks size and options depending |

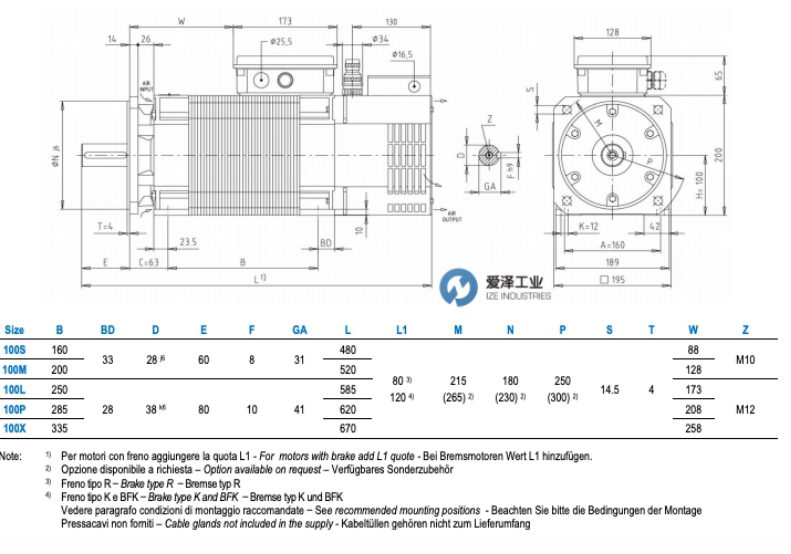

OEMER電機QL100P介紹及尺寸圖
變頻電機Asincrono三相Ad Old Prestazioni，交流三相高性能變頻器負載電動機，三相異步電動機，用于變頻器運行。
OEMER電機QL系列型號解析
OEMER電機QL系列型號列舉：
OEMER QL100S
OEMER QL100M
OEMER QL100L
OEMER QL100P
OEMER QL100X
OEMER QL100SM
OEMER QL100LPX
OEMER MOTO NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業集產品開發、設計、制造、銷售、服務于一體，代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于OEMER電機QL100P的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for OEMER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

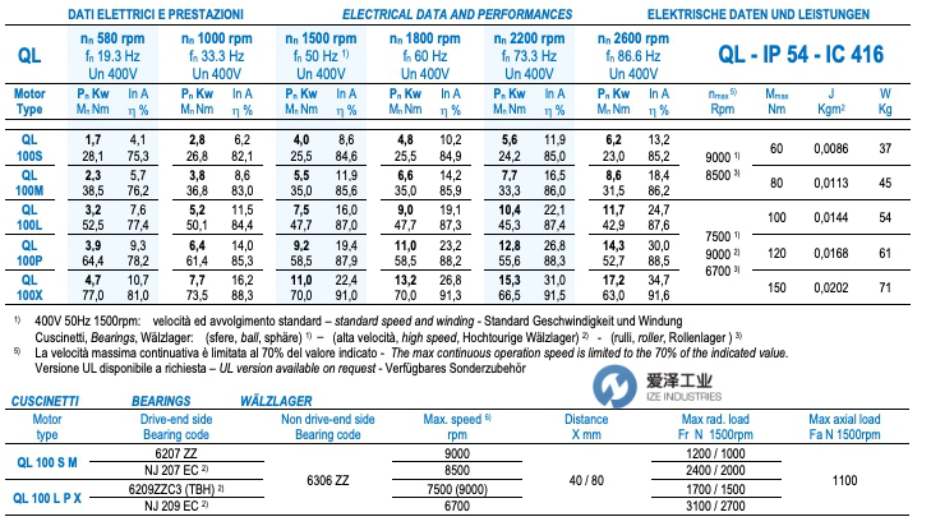

OEMER電機QL系列 QL100P參數描述
