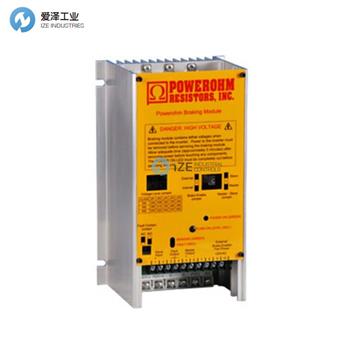

POWEROHM制動模塊BM4-50技術參數
Specifications | |
General | |
Peak Current | 200 Amps |
Resistance Ohms | 3.88 Ohm |
Series | LG - 50 to 150 Amps |
System Voltage | 480 V |
Electrical Ratings | |
Current / Amperage Rating | 50 A |
Maximum Current Rating Amps Continuous | 50 Amps |
Voltage Rating Description | 480 V |
POWEROHM制動模塊BM4系列介紹
交流變頻驅動器通常與各種類型的電動機一起使用，以形成可靠的變速驅動系統。當應用程序要求的減速速度比單獨驅動器可管理的速度快時，或者當電動機速度超過驅動器輸出頻率設置的同步速度時（稱為大修負載條件），這些驅動器系統可能會出現問題。這兩種情況都會產生再生功率，該功率從電動機流回驅動器，從而導致其直流母線上升。為了管理再生功率并避免由于過電壓跳閘而關閉驅動器，該功率必須通過外部制動電阻來耗散。
AC variable frequency drives are commonly used with various types of motors to form reliable variable speed drive systems. Problems with these drive systems can occur when an application requires a deceleration rate faster than what can be managed by the drive alone, or when motor speeds exceed the synchronous speed set by the output frequency of the drive (which is called an overhauling load condition). Both of these conditions create regenerated power which flows from the motor back into the drive, causing its DC Bus to rise. To manage the regenerated power and avoid shutting the drive down due to an over-voltage trip, this power must be dissipated by an external braking resistor.
POWEROHM制動模塊BM系列其他常用型號：
POWEROHM BM2-115
POWEROHM BM2-150
POWEROHM BM2-50
POWEROHM BM208-1200
POWEROHM BM208-450
POWEROHM BM208-600
POWEROHM BM208-900
POWEROHM BM240-1200
POWEROHM BM240-450
POWEROHM BM240-600
POWEROHM BM240-900
POWEROHM BM380-1200
POWEROHM Brake NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于POWEROHM制動模塊BM4-50的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for POWEROHM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
POWEROHM制動模塊BM系列 BM4-50規格描述
