ROSENBERG風機DKHR450-4KW.138.5HA技術參數
Type | DKHR450-4KW.138.5HA |
U (V) | 400 D |
Frequenz | 50 Hz |
P1 (kW) | 0.91 |
I (A) | 1.65 |
n (min-1) | 1300 |
tR (℃) | 70 |
IA/NI | 3.3 |
lns CL | F |
IP | 54 |
SB | 01.006 |
ROSENBERG風機DKHR系列介紹
Rosenberg徑向風扇具有自由運行葉輪的E/DKHR型，通過結合外部轉子電機和向后彎曲葉輪，形成一個緊湊和構造的最佳風扇單元。
在向后彎曲葉輪的開發過程中，Rosenberg非常重視高效率，同時獲得極佳的聲級。
該系列風扇設計用于安裝在空氣處理裝置、衛生裝置、潔凈室過濾器裝置和空調裝置等電器上。

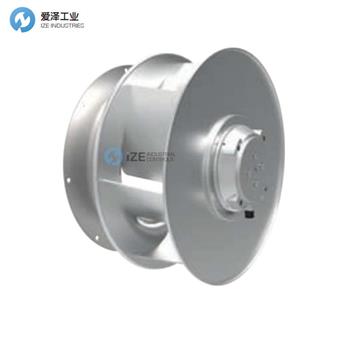

Rosenberg Radial Fans with free-running impeller type E/DKHR form a compact and constructively optimal fan unit by combining an external rotor motor and a backward-curved impeller.
During development of the backward curved impeller, Rosenberg attached great importance to high efficiency and at the same time a most optimal sound level.
Fans of this construction are designed for installation in appliances such as air handling units, hygienic units, clean room filter units and air conditioning units.

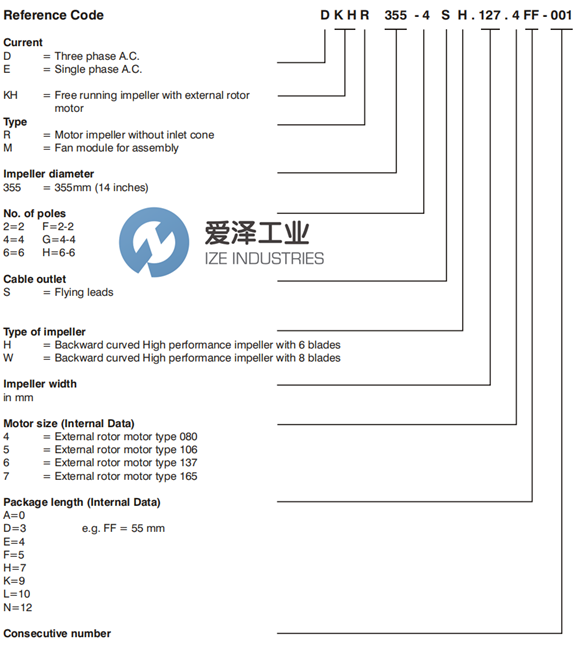

ROSENBERG風機DKHR系列選型
ROSENBERG風機DKHR系列其他常用型號：
ROSENBERG DKHR225-2SW.070.4EC
ROSENBERG DKHR225-2KW.070.4E
ROSENBERG DKHR250-2SW.078.4FF
ROSENBERG DKHR250-2KW.078.4FF
ROSENBERG DKHR280-2SW.087.5FA
ROSENBERG DKHR280-2KW.087.5FA
ROSENBERG DKHR315-2SW.070.5FA
ROSENBERG DKHR315-2KW.070.5FA
ROSENBERG DKHR315-2SW.098.6FA
ROSENBERG DKHR315-2KW.098.6FA
ROSENBERG DKHR315-4SW.098.4EC
ROSENBERG DKHR315-4KW.098.4EC
ROSENBERG DKHR355-2SW.110.6HF
ROSENBERG DKHR355-2KW.110.6HF
ROSENBERG DKHR355-4SW.110.4FF
ROSENBERG DKHR355-4KW.110.4FF
ROSENBERG DKHR400-2SW.065.6HF
ROSENBERG DKHR400-2KW.065.6HF
ROSENBERG DKHR400-4SW.123.5FA
ROSENBERG DKHR400-4KW.123.5FA
ROSENBERG DKHR450-4SW.138.5HA
ROSENBERG DKHR450-4KW.138.5HA
ROSENBERG DKHR500-4SW.155.6HF
ROSENBERG DKHR500-4KW.155.6HF
ROSENBERG DKHR500-4SW.155.6LA
ROSENBERG DKHR500-4KW.155.6LA
ROSENBERG DKHR560-4SW.132.6LA
ROSENBERG DKHR560-4KW.132.6LA
ROSENBERG DKHR560-4SW.174.7KF
ROSENBERG DKHR560-4KW.174.7KF
ROSENBERG DKHR560-6SW.174.6FA
ROSENBERG DKHR560-6KW.174.6FA
ROSENBERG DKHR630-4SW.158.7NA
ROSENBERG DKHR630-4KW.158.7NA
ROSENBERG DKHR630-6SW.195.6LA
ROSENBERG DKHR630-6KW.195.6LA
ROSENBERG DKHR710-6SW.219.7KF
ROSENBERG DKHR710-6KW.219.7KF
ROSENBERG FANS NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSENBERG風機DKHR450-4KW.138.5HA的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSENBERG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
ROSENBERG風機DKHR450-4KW.138.5HA技術參數及選型
