MAVILOR電機MSS-12系列產品參數
Specification | |
RATED SPEED | 3000rpm |
RATED VOLTAGE±5% | 106.7 V |
RATED CURRENT | 14 A |
RATED OUTPUT POWER | 1240 W |
EFFICIENCY | 83 % |
RATED TORQUE | 3.95 Nm |
MAXIMUM TORQUE | 23.7 Nm |
MAXIMUM SPEED | 4500 rpm |
EMF CONSTANT±5% | 30.85 V/1000 rpm |
TORQUE CONSTANT±5% | 0.295 Nm/A |
FRICTION TORQUE | 0.09 Nm |
DAMPING CONSTANT | 0.02 Nm/1000 rpm |
TERMINAL RESISTANCE (25℃) | 0.75 Ω |
ARMATURE INDUCTANCE | <200 μH |
INERTIA | 1.7 kg m2 10-3 |
MECHANICAL TIME CONSTANT | 14 ms |
TRANSITORY POWER | 330 kW/s |
THERMAL TIME CONSTANT ROTOR TO HOUSING | 300 s |
THERMAL TIME CONSTANT HOUSING TO AMBIENT | 2700 s |
THERMAL RESISTANCE ROTOR TO HOUSING | 0.3 ℃/W |
THERMAL RESISTANCE HOUSING TO AMBIENT | 0.3 ℃/W |
RADIAL LOAD (at mid-length of shaft) | 500 N |
AXIAL LOAD | 250 N |
MASS (Only motor. No options) | 10 kg |
MAVILOR電機MSS-12系列產品介紹
MAVILOR的軸向氣隙碟形電樞特別適合于高響應伺服驅動器。高轉矩慣性比和平穩，無齒槽轉矩的低速速度控制使MAVILOR成為最苛刻應用場合的首選電動機。
與以前的設計相比，MAVILOR MSS系列伺服電機的功率重量和體積比提高了20％，功率比和加速能力提高了20％。
結合無鐵轉子設計，這些工業強度電動機具有極長的電刷壽命和高效率。
MAVILOR MSS系列電動機在電動機結構內集成了轉速表和故障安全保持制動器，在許多情況下，其長度是同等額定常規電動機的一半。

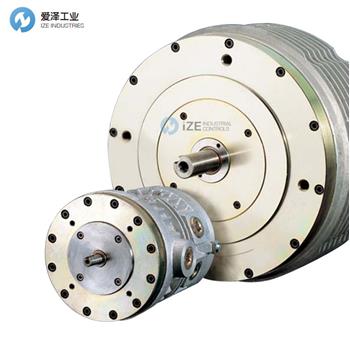

MAVILOR's axial air gap dish armature is specially suited for high response servo drives. High torque to inertia ratio and smooth, non cogging torque low speed velocity control makes MAVILOR the motor of choice for the most exacting applications.
The MAVILOR MSS Series servomotors provide a 20% increase in power to weight and volume ratios and a 20% increase in power rate and acceleration capability over previous designs.
Incorporating an ironless rotor design, these industrial strength motors have an extremely long brush life and high efficiency.
MAVILOR MSS Series motors incorporate options of tachometers and fail-safe holding brakes within the motor structure, and in many cases are half the length of equivalently rated conventional motors.
MAVILOR電機MSS系列其他常見型號：
MAVILOR MSS-2
MAVILOR MSS-4
MAVILOR MSS-6
MAVILOR MSS-8
MAVILOR MSS-12
MAVILOR MSS-22
MAVILOR MSS-35
MAVILOR MSS-45
MAVILOR電機MSS-12 MS120.040.0000-00
MAVILOR motor NEW + ORIGINAL+ ONE YEAR WARRANTY
