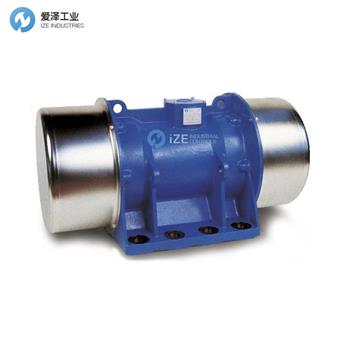

VENANZETTI VIBRAZIONI電機VV10N/2D1產品參數

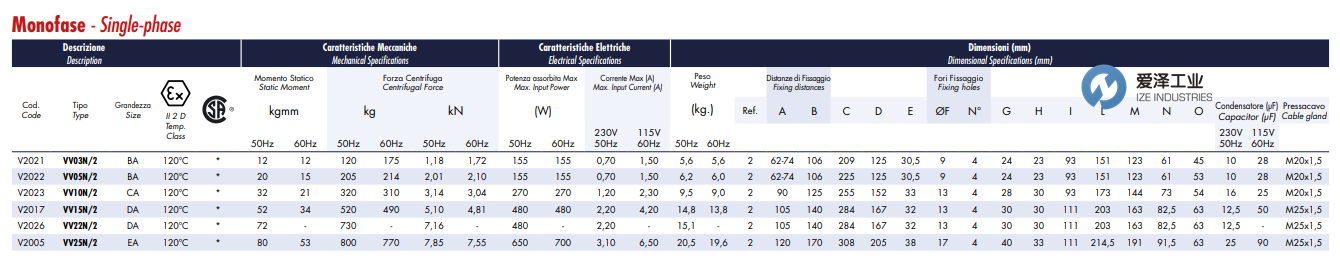

Specifications | |
Code | V2023 |
Size | CA |
Temp Class | 120°C |
Static Moment kgmm | 50Hz 32 |
Centrifugal Force kg | 50Hz 320 |
Max. Input Power (W) | 50Hz 270 |
Max. Input Current(A) | 230V 50Hz 1,20 |
Weight (kg.) | 50Hz 9,5 |
Ref. | 2 |
Pressacavo Cable gland | M20x1,5 |
VENANZETTI VIBRAZIONI電機VV系列產品介紹
一般特征
電源：標準三相230 / 400V，50 Hz。根據要求，三相42至690V，50/60 Hz。在2極和4極的最大EA可用單相115V，50/60 Hz和230V，50/60 Hz。
?工作溫度：-20°C至+ 40°C。
?設計用于100％離心力CF的連續工作（S1）。
?標準機械防護等級IP66。
?符合ATEX 2014/34 / UE 易燃粉塵環境指令的標準范圍，區域21和22，類別II2D，tA21 IP 66。
?電機外殼為鋁制，最大尺寸為LA，球面鑄鐵為所有其他尺寸。覆蓋所有范圍的AISI 304不銹鋼重量。
?超高強度鋼制軸。
?權重調節系統，刻度指示器從CF的0到100％。特殊裝置，避免錯誤調整砝碼。
?用環氧粉末進行標準噴漆（厚度為120 μm），并在200°C的烘箱中聚合。
?特殊執行軸承，可在100％CF下連續運行。
?用于潤滑脂密封的迷宮系統：確保正確和長壽的潤滑。但是，可以通過隨附的GA規格的專用潤滑脂杯再次潤滑。
?通過VACUUM或DROP BY DROP系統保護定子。絕緣等級F（155°C）。
?根據要求，熱敏電阻PTC 130°C最高為LA尺寸，MA為標準尺寸。
General features
Power supply: standard three-phase 230/400V, 50 Hz. On request three-phase 42 to 690V, 50/60 Hz. Up to size EA at 2 and 4 poles available single phase 115V, 50/60 Hz and 230V, 50/60 Hz.
? Operating temperature: from -20°C to +40°C.
? Designed for continuous duty (S1) with 100% centrifugal force CF.
? Standard mechanical protection IP66.
? Standard range in compliance with ATEX 2014/34/UE Directive for combustible dust atmospheres, zone 21 and 22 category II2D, tD A21 IP 66.
? Motor casing in aluminium up to size LA included, in spheroidal cast iron for all other sizes. Cover weights in stainless steel AISI 304 for all the range.
? Oversized shaft in highly resistant steel.
? Weights regulation system with graduated indicator from 0 to 100% of the CF. Special device to avoid wrong adjustment of weights.
? Standard painting (120 μm thickness) with epoxy powder, polymerized in oven at 200°C.
? Special execution bearings, for continuous operation at 100% CF.
? Labyrinth system for grease seal: ensures correct and LONG LIFE lubrication. However, it is possible to grease again through special grease cups from size GA included.
? Protection of the stator with VACUUM or DROP BY DROP system. Insulation Class F (155°C).
? Thermistor PTC 130°C at request up to size LA, standard from size MA.
VENANZETTI VIBRAZIONI電機VV系列其他常用型號：
VENANZETTI VIBRAZIONI VV10N/2D1
VENANZETTI VIBRAZIONI VV03N/2
VENANZETTI VIBRAZIONI VV05N/2
VENANZETTI VIBRAZIONI VV10N/2
VENANZETTI VIBRAZIONI VV15N/2
VENANZETTI VIBRAZIONI VV22N/2
VENANZETTI VIBRAZIONI VV25N/2
VENANZETTI VIBRAZIONI Electric vibrators NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于VENANZETTI VIBRAZIONI電機VV10N/2D1的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for VENANZETTI VIBRAZIONI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
