HALIFAXFAN排風機64647-2規格描述
specification | |
Quantity | 1 |
Actual Flow | 7701m3/h |
Actual Temperature | 20degC |
Design Temp. | 220degC |
Medium Density | 1.2 |
Static Pressure | 758.27 Pa |
Fan Size/Type | 22"BFBC |
Drive Arrangement | Motor Driven |
Impeller Speed | 1430 RPM |
Fan Static Efficiency | 0.747 |
Fan Total Efficiency | 0.787 |
Rated Power | 3KW 2pole |
Variable Frequency Drive | Yes |
Enclosure/Efficiency | IP55 F/B B3T IE3 |
PTC/Roller Bearing | No /No |
Manufactory / Series | WEG W20 |
Color | RAL9010 |
Power Supply | 380V/3/50Hz |
Impeller | Mild Steel |
Fan Case & Flanges | Mild Steel |
Pedestal | Mild Steel |
Surface Process | Bead blast to SA2.5 |
Carbon Steel Painting | Painting 2 coats |
Surface Colour | High temperature silver power painting |
dBA@1m with duct inlet and outlet | 85 dBA |
Impeller Balance Test | BS ISO 1940-1：2003 G 6.3 |
Impeller dynamic balance test according to BS ISO 1940-1:2003 G 6.3 | |
Mechanical Test | BS 848-2003/BS ISO 14694:2003 |
Workshop mechanical running test according to BS 848-2003/BS | |
Inlet/Outlet flange | Yes |
Access Panel | Yes |
Plug Drain Unit | Yes |
Cooling Disk | Yes |
Novus Shaft Seal | Yes |
Anti-Spark Design | Yes |
Lagging | Yes |

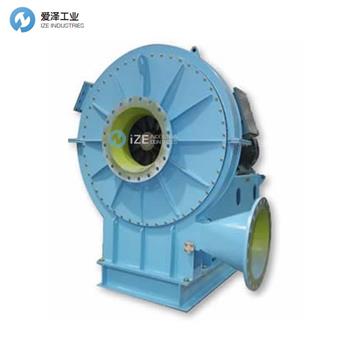

HALIFAXFAN排風機64647-2
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件HALIFAXFAN 排風機部分型號：
HALIFAXFAN 64647-2
HALIFAXFAN FAN NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HALIFAXFAN排風機64647-2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HALIFAXFAN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
HALIFAXFAN排風機64647-2產品參數
