MICRONEL鼓風機U65HN-024KS-6技術參數
Electrical | |
Nominal supply voltage | 24 VDC |
Supply voltage range | 12 to 26.4 VDC |
Maximum Ratings for Continuous Operation | |
Minimum flow rate | 10 l/min |
Maximum speed | 60 000 rpm |
Maximum acceleration | 400 rpm/ms |
Maximum power consumption | 90 W |
Maximum housing surface temperature | 70 °C |
Maximum NTC temperature | N/A |
Environmental | |
Ambient temperature (operating) | -20 to 50 °C |
Ambient temperature (storage) | -20 to 70 °C |
Relative humidity (non-condensing) | 10 to 95 (non condensing) %RH |
Ingress protection (EN60529) | IP10 |
Maximum oxygen concentration | 100% |
Motor | |
Type | Brushless direct current motor with Hall sensors |
Winding insulation class | F, 155 °C |
Phase to phase resistance | 0.238 Ω |
Phase to phase inductance | 0.0202 mH |
Speed constant | 2550 rpm/V |
Torque constant | 3.74 mNm/A |
Number of pole pairs | 1 |
Hall sensor type | Allegro A 1220 |
NTC type | R25 = 10 kΩ +/- 1 % |
Lifetime | |
L10 at 25 °C ambient temperature | > 60 000 h |
Acoustics | |
Sound pressure level | 47 dB(A) |
Leak Tightness | |
Maximum leak flow rate | N/A |
Mechanical | |
Blower weight | 240 g |
Rotor weight | 19 g |
Rotor moment of inertia | 6.12 g · cm2 |

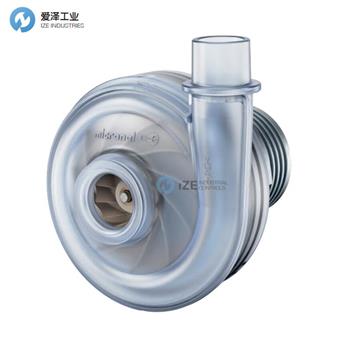

MICRONEL鼓風機U65HN-024KS-6產品介紹
這是一款高效、超靜音的高性能鼓風機，專為要求嚴苛的重癥監護通氣而設計，滿足最大動態性和100%耐氧要求。U65HN、U65MN和U65ML均屬于U65適型產品系列，具有壓力和流量均勻的特性，便于安裝。
特征：
? 靜壓：95 hPa，自由流量：435 l/min
? 24 VDC 無刷直流電機
? 運行安靜高效
? 低慣性轉子
? 10-12 Hz 高頻振蕩通氣
? 耐氧
This efficient and super silent high performance blower has been specifically designed for demanding intensive care ventilation or neonatology, where maximum dynamics and 100% oxygen resistance are required. U65HN, as well as U65MN and U65ML is a member of the U65 FORM FIT LINE, which provides a uniform pressure and flow behaviour and mounting concept.
Features:
? Static pressure: 95 hPa, freeflow: 435 l/min
? 24 VDC brushless DC-motor
? Very quiet operation and highly efficient
? Low inertia rotor
? High frequency oscillatory ventilation at 10-12 Hz
? O2 resistant
MICRONEL鼓風機其他常用型號：
MICRONEL U65H4-024KX-6
MICRONEL U65HN-024KS-6
MICRONEL U65ML-012KS-5
MICRONEL U65ML-024KT-5
MICRONEL U65MN-024KS-5
MICRONEL U65MN-024KS-6
MICRONEL U71HL-024KM-4
MICRONEL U71HL-024KM-5
MICRONEL U85HL-024KH-4
MICRONEL U85HL-024KH-5
MICRONEL U85MX-024KE-4
MICRONEL U85MX-024KE-5
