NETTER VIBRATION振動器NCT250規格描述

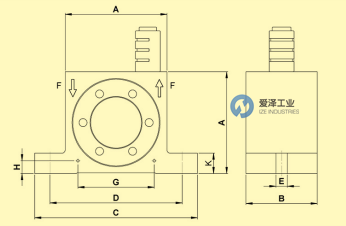

Type | NCT 250 |
|
A（mm) | 120 | |
B（mm) | 86 | |
C（mm) | 194 | |
D（mm) | 152 | |
E（mm) | 17 | |
F（mm) | G3/8 | |
G（mm) | 100 | |
H（mm) | 13 | |
k（mm) | 25 | |
Weight(kg) | 3.820 |
NETTER VIBRATION振動器NCT系列介紹
NCT 系列氣動渦輪振動器
由 NetterVibration 推出的氣動渦輪振動器 NCT 55
NCT 系列氣動渦輪振動器特別適用于散裝物料的輸送。它們可用于排空容器和大袋、驅動滑槽、篩子和振動臺，以及機械刺激工藝過程。
NCT 氣動渦輪振動器的主要特點是高頻率、低噪音水平和低氣源消耗。
其旋轉振動由偏心安裝不平衡質量的渦輪產生。振動頻率及離心力可通過調節工作壓力連續調節。
提供符合 ATEX 標準的版本和不銹鋼外殼。

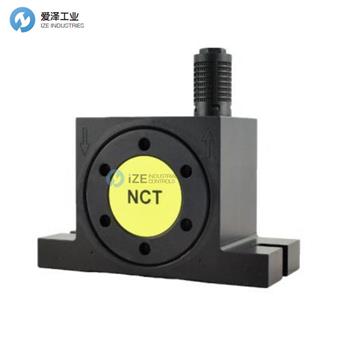

Series NCT Pneumatic Turbine Vibrators
pneumatic turbine vibrator NCT 55 by NetterVibration
Pneumatic turbine vibrators of the series NCT are particularly suitable for moving bulk materials. They can be used for emptying containers and big bags, driving chutes, sieves and vibrating tables and for the mechanical stimulation of processes.
Special features of the NCT pneumatic turbine vibrators are high frequency at low noise level and low air consumption.
The rotary vibration is produced by a turbine with eccentrically mounted unbalanced masses. The frequency and therefore the centrifugal force can be continuously regulated via the operating pressure.
ATEX-conform and stainless steel housings are available.
