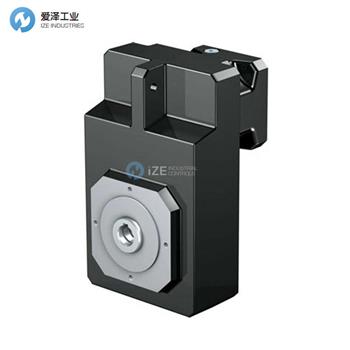

STOBER齒輪箱F402SG0135ME20技術參數
Shaft design | Hollow shaft with shrink ring |
Output bearings | Standard bearing |
Shaft dimension | ?40/40 |
Position shaft / pinion | Shrink ring side 6 |
Cover | Without |
Housing design | Pitch circle diameter |
Output flange | Without |
Coupling design | Clamp coupling |
Backlash | Standard |
Paint | 1-layer paint |
Color | RAL 9005 deep black |
STOBER齒輪箱F系列介紹
緊湊的尺寸和靈活性使這些 STOBER 齒輪傳動裝置成為需要高性能、高效率和高耐用性的應用的熱門選擇。與所有 SMS 裝置一樣，F(xiàn) 系列齒輪傳動裝置有多種配置可供選擇，幾乎可以滿足任何安裝要求。
特點
? 4:1 至 540:1
? 標準間隙為 ≤11 弧分；減小的間隙為 ≤6 弧分
? 雙唇密封件可防止油進入并防止污染物進入。雙重密封適用于重載應用
? 高品質斜齒輪表面硬化至 58-62 洛氏硬度。精密加工，噪音低，使用壽命長
? 磁性油過濾
? 大多數空心和實心軸輸出也有公制，不銹鋼可用于沖洗、食品和飲料應用
? 隨附適量的油，以防止齒輪干啟動損壞
? 一體式鑄鐵外殼配有精密加工的軸承支撐，可確保齒輪組對準，延長軸承壽命，提供出色的懸臂負載能力，并消除兩件式外殼常見的泄漏問題
Compact size and flexibility make these STOBER gear drives a popular choice for applications that require high performance, efficiency, and durability. Series F gear drives, like all SMS units, are available with a wide selection of configurations to match almost any mounting requirement.
Features
? 4:1 to 540:1
? Standard backlash is ≤11 arc minutes; reduced backlash is ≤6 arc minutes
? Double lip seals keep oil in and contaminants out. Double seals available for severe duty applications
? High quality helical gearing is case hardened to 58-62 Rockwell C. Precision finished for low noise and long service life
? Magnetic oil filtration
? Most hollow and solid shaft outputs are also available in metric, and in stainless steel for washdown, food, and beverage duty
? Shipped with the proper amount of oil to prevent gear damaging dry start-ups
? One-piece cast iron housing with precision machined bearing supports assure gearset alignment, prolongs bearing life, provides exceptional overhung load capacities, and eliminates leakage problems common to two-piece housings

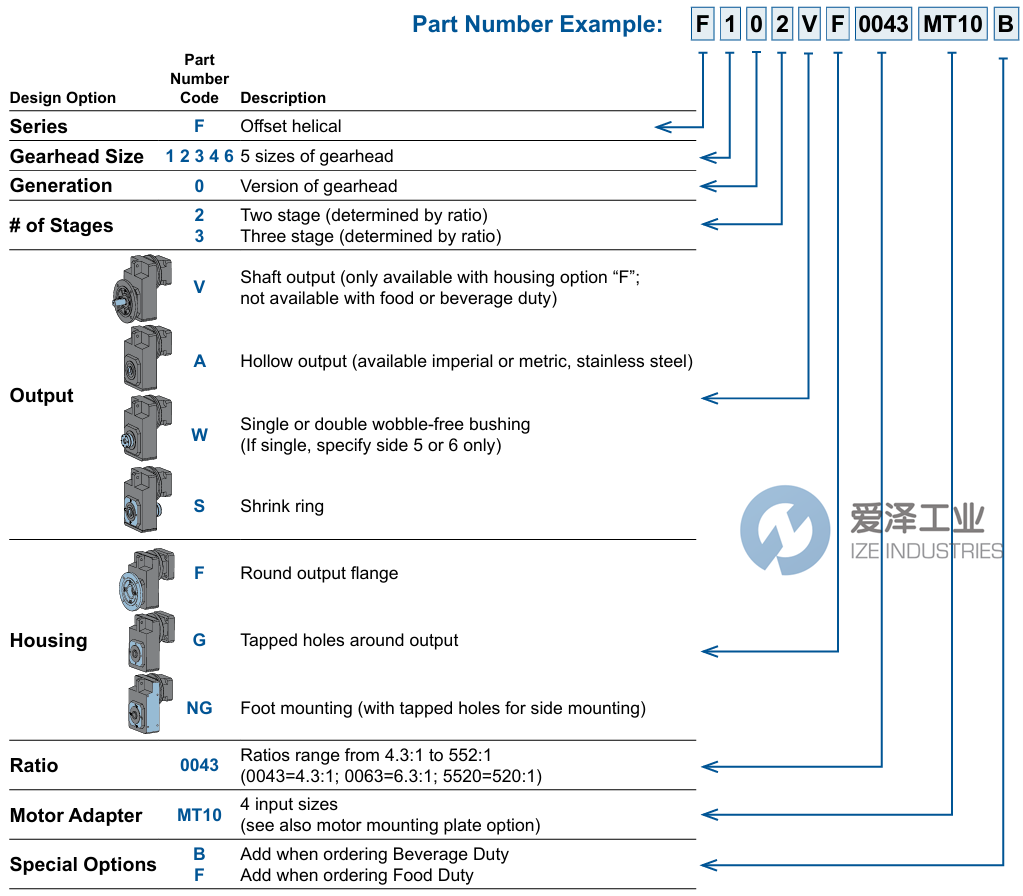

STOBER齒輪箱F系列選型
STOBER齒輪箱F系列其他常用型號：
STOBER F402SB-0470-MR30-250/28
STOBER F602WG0350MT20
STOBER F202WG0135MT30F
STOBER F102VF0135MT10
STOBER F402SG0135ME20
STOBER F302AG0135ME20F
