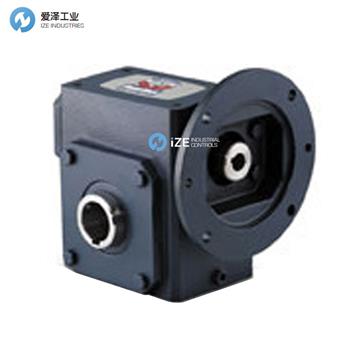

IRONMAN減速機GRG-BMQ-821-15-R-56技術參數
Technical Specifications | |
Reducer Style: | Worm - Right Angle |
Output Shaft Orientation: | R |
Output Key: | 1/4 X 1.44 |
Mounting Style: | No Base |
Series Style: | GRG-BMQ-R |
Output Shaft Assembly Code: | R |
No. of Gear Reductions: | Single |
Input HP: | 1.887 |
Frame Size: | 56C |
Input Bore (C Face): | 0.625 |
Assembly: | BMQ-R |
Reducer: | Worm - Right Angle |
Product Line: | GRG Series - Ironman Worm Gear Reducers |
Output Diameter (in): | 1.000 in |
Shaft Seal Material: | Viton |
Input HP @ 1750 RPM: | 1.887 |
Input Quill Diameter (in): | 0.625 in |
Ratio Range: | 15:1 |
Center Distance (in): | 2.06 |
Series: | GRG Series - Ironman Worm Gear Reducers |
Reduction: | Single |
Output Shaft: | Solid Shaft |
Overhung Load Rating (Output Shaft(lb)): | 1,125 lb |
Series Type: | Cast Iron 800 Worm Gear Reducers |
Input Style: | C-Face Quill |
Input RPM: | 1750 |
Output RPM: | 116 |
Output Style: | R |
Output HP: | 1.661 |
Overhung Load: | 1125 |
Series Code: | GRG |
Keyway: | 3/16 X 3/32 |
Motor Frame Size: | 56C |
Gear Type: | Worm |
Service Factor: | 1 |
Input Keyway: | 3/16 X 1.38 in |
Model Code: | BMQ821 |
Input Diameter (in): | 0.625 in |
Thrust Rating - output shaft: | 1099 |
Product Type: | Worm Speed Reducer |
Input Keyway (C Face): | 3/16 X 3/32 |
Ratio: | 15:1 |
Motor HP Rating: | 1.5 |
Output Shaft Direction: | Right |
Output Torque Rating (in-lb): | 897 in/lbs |
Housing Material: | Cast Iron |
IRONMAN減速機GR系列產品介紹
? 一件式鑄鐵外殼采用單輸出蓋設計，經過 CNC 加工，可實現精確的組件安裝和對準。
? 工廠填充優質 Mobil Glygoyle 460 聚烷二醇潤滑劑。
? 大油容量提供積極的飛濺潤滑和卓越的冷卻能力。
? Viton? 雙唇密封件通過提高耐高溫、耐磨損和耐化學品性能來延長使用壽命。
? 獨特的套筒密封護罩可保護輸入密封件在電機安裝過程中免受損壞。
? 青銅蝸輪采用優質青銅冷鑄而成，具有更大的強度、潤滑性和優越的使用壽命。
? 超大高速軸承，積極保持頻繁換向和啟動/停止循環。輸出軸上的圓錐滾子軸承具有高懸臂和推力負載能力。
? 所有設備均在工廠經過 100% 運行和泄漏測試，以確保您收到最高質量的產品。
? 通過全角度安裝裝置、最廣泛的附件底座和法蘭選擇以及最大的庫存減速器樣式選擇，實現終極應用靈活性。
? 安裝尺寸可與大多數行業標準減速器互換。
? One-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment.
? Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant.
? Large oil capacity provides positive splash lubrication and superior cooling capability.
? Viton? double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.
? The unique quill seal guard protects the input seal from damage during motor installation.
? Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life.
? Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.Tapered roller bearings on output shaft for high overhung and thrust load capacities.
? All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.
? Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.
? Mounting dimensions are interchangeable with most industry standard reducers.
IRONMAN減速機GR系列其他常用型號：
IRONMAN GRG-BMQ821-20-R-56
IRONMAN GRG-BMQ821-60-L-56
IRONMAN GRG-BMQ832-100-L-56
IRONMAN GRG-BMQ826-60-L-56
IRONMAN GRG-BM821-25-D-56
IRONMAN GRG-BM821-10-L-56
IRONMAN GRG-BM826-100-R-56
IRONMAN GRG-BM826-40-R-56
IRONMAN GRG-BM821-5-R-56
IRONMAN GRG-BM821-25-L-56
IRONMAN GRG-BM821-60-L-56
IRONMAN GRG-BMQ-821-15-R-56
