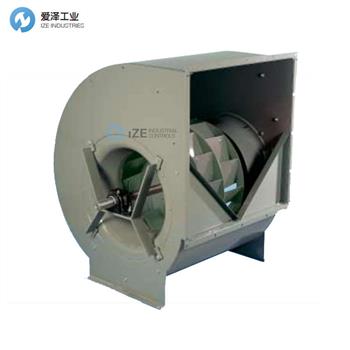

FLAKTWOODS離心風機GXLB-5-031-1-1-1-1技術參數

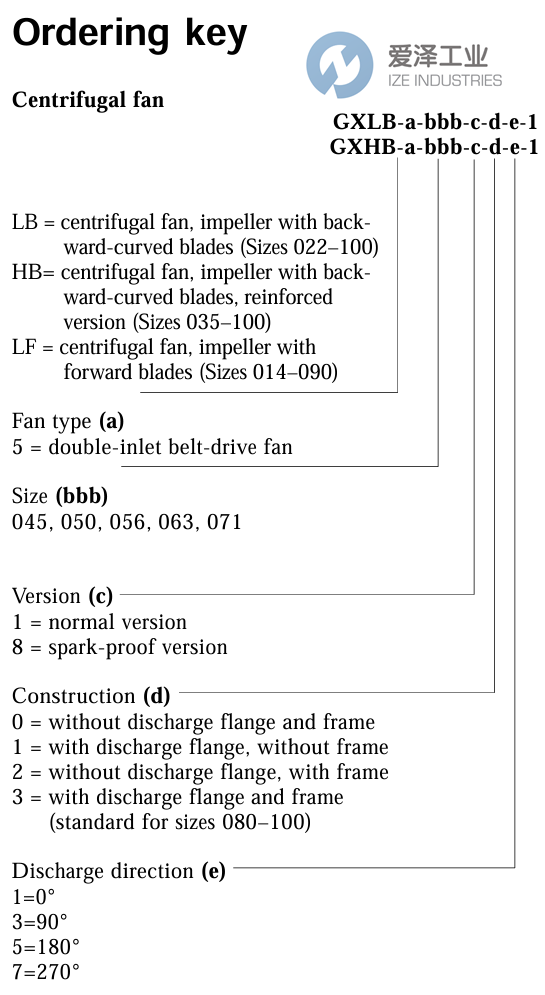

Code | GXLB-5-031-1-1-1-1 |
Series | GX |
Model | LB = centrifugal fan, impeller with back- ward-curved blades (Sizes 022–100) |
Fan type | 5 = double-inlet belt-drive fan |
Size | 031 |
Version | 1 = normal version |
Construction | 1 = with discharge flange, without frame |
Discharge direction | 1=0° |
FLAKTWOODS離心風機GXLB系列介紹
雙進風離心風機，皮帶傳動。風機外殼由森吉米爾鍍鋅鋼板制成，采用匹茲堡折疊法連接。鋼制葉輪，葉片向后彎曲，葉片焊接在罩殼上。葉輪脫脂、磷化，涂有 60 毫米環氧粉末涂料。葉輪動態平衡精度為 G 2.5（尺寸 035 – 100）或 G 6.3（尺寸 022 – 031），符合 ISO 1940 - 1973 標準。
風機截止裝置專為實現最佳空氣動力學性能而設計。鋼制軸兩端帶鍵槽，設計臨界轉速比風機最大轉速高 20%。葉輪通過鍵固定在軸上。
永久潤滑的單列深溝球軸承，兩側密封，通過偏心鎖緊環固定在軸上。軸承由三臂或四臂蜘蛛支撐。
Double inlet centrifugal fan for belt drive. Fan casing made of Sendzimir galvanized sheet steel and jointed by Pittsburg folding method. Steel impeller with backward curved blades, blades welded to the shroud. Impeller is degreased, iron phosphatized and painted with epoxy-powder paint 60 mm. Impeller is dynamically balanced to an accuracy of G 2.5 (sizes 035 – 100) or G 6.3 (sizes 022 – 031) according to ISO 1940 - 1973.
Fan cut-off is specially designed for optimal aerodynami- cal properties. Steel shaft with keyways at both ends and designed for a critical speed which is 20% higher than the maximum speed of the fan. Impeller secured to the shaft by means of a key.
Permanently lubricated single-row deep-groove ball bea- rings sealed at both sides, secured to the shaft by means of an eccentric locking collar. The bearings are supported by three or four-arm spider.
FLAKTWOODS離心風機GXLB系列選型
FLAKTWOODS離心風機GXLB系列其他常用型號：
FLAKTWOODS GXLB-5-028-1-1-1-0
FLAKTWOODS GXLB-5-031-1-1-1-1
FLAKTWOODS GXLB-5-031-1-0-3-1
FLAKTWOODS GXLB-5-031-1-1-3-1
FLAKTWOODS GXLB-5-045-1-1-3-1
FLAKTWOODS FAN NEW + ORIGINAL+ ONE YEAR WARRANTY
