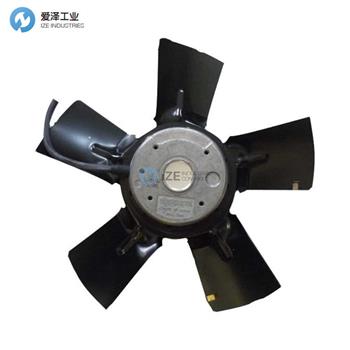

WISTRO風機A2D265-AA02-10技術參數
Technical description | |
Weight | 2.2kg |
Size | 265mm |
Motor size | 68 |
Rotor surface | Painted black |
Impeller material | Sheet steel,painted black |
Number of blades | 5 |
Airflow direction | V |
Direction of rotation | Counterclockwise, viewed toward rotor |
Degree of protection | IP44; installation-and position-dependent as per EN60034-5 |
Insulation class | B |
Moisture(F)/ Environmental(H) protection class | H1+ |
Installation position | Shaft horizontal or rotor on bottom; rotor on top on request |
Condensation drainage holes | On rotor side |
Mode | S1 |
Motor bearing | Ball bearing |
Touch current according to IEC 60990 | <0.75mA |
with cable | Lateral |
Protection class | I(with customer connection of protective earth) |
Conformity with standards | EN60335-1;CE |
Approval | UL1004-1;CSAC22.2No.100 |
WISTRO風機A2D系列其他常用型號：
WISTRO A2D160-AB22-05
WISTRO A2D170-AA04-01
WISTRO A2D170-AA04-02
WISTRO A2D170-AA04-38
WISTRO A2D200-AA02-01
WISTRO A2D200-AA02-02
WISTRO A2D210-AA10-17
WISTRO A2D210-AB10-06
WISTRO A2D250-AA02-01
WISTRO A2D250-AA02-02
WISTRO A2D250-AA08-74
WISTRO A2D250-AD26-05
WISTRO A2D250-AH02-01
WISTRO A2D250-AI14-09
WISTRO A2D265-AA02-10
WISTRO A2D265-AA02-11
WISTRO A2D300-AP02-01
WISTRO A2D300-AP02-02
WISTRO A2D300-AP08-15
