ZIEHL-ABEGG風機FC091-SDS.7Q.V7技術參數
Technical data | |
Type | FC091-SDS.7Q.V7 |

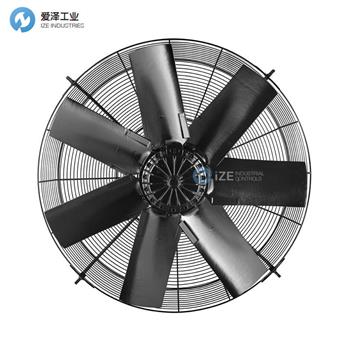

Designation | Axial fan with diecast blades |
Rated values | 3~400V±10% D/Y 50Hz P? 3.60/2.50kW |
Electrical connection | Terminal box K07 |
Min. operating temperature °C | -40 |
Mounting type terminal box | Mounted on Stator |
Type of protection | IP54 |
Thermal class | THCL155 |
Fitting position | H/Vu/Vo |
Motor protection | thermal contact |
Impregnation | Moisture and hot climate protection |
Quality of bearings | ball bearing with long-time lubrication |
Material Rotor | Aluminium |
Painting rotor | Rotor 1 coat painted |
colour rotor | RAL 9005 (jet black) |
Material blades | Aluminium |
Painting impeller | 1 coat painted |
Colour blades | RAL 9005 (jet black) |
Painting mot.suspens | Motor suspension 1 coat paint |
colour suspension | RAL 9005 (jet black) |
Weight kg | 53,05 |
ErP Data | Efficiency stata: 38.3% |
ZIEHL-ABEGG風機FC系列介紹
FC 型號系列軸流風扇配有經過驗證的鋁壓鑄葉片，由于完全速度控制的體積流量，因此具有高度靈活性。建議將它們用于空氣動力學設計的風道系統，例如全噴嘴和管道安裝。采用交流技術的軸流風機尺寸范圍為 315 毫米至 1,250 毫米，適用于高達 62,000 立方米/小時的流量和高達 300 Pa 的靜壓增量。該風機代表了能源效率之間經濟上可行的折衷方案和初始投資成本，非常適合機械工程、系統技術和汽車技術等應用領域。
Axial fans from the FC model range with proven aluminium die-cast blades offer high flexibility due to fully speed-controlled volume flow rates. They are recommended for use in aerodynamically designed air duct systems, such as full nozzles and pipe installations. The axial fan powered by AC technology is available in dimensions from 315 mm to 1,250 mm and is suitable for flow rates of up to 62,000 m3/h and static pressure increases of up to 300 Pa. This fan represents an economically viable compromise between energy efficiency and initial investment costs and is well-suited for application areas such as mechanical engineering, system technology and automotive technology.
ZIEHL-ABEGG風機FC091系列其他常用型號：
ZIEHL-ABEGG FC091-SDS.7Q.V7
ZIEHL-ABEGG FC091-SDQ.7Q.V7
ZIEHL-ABEGG FC091-SDI.7Q.V7
