RITTAL風扇SK3140/500技術參數
Product description | |
Article number: | SK 3140.500 |
Color | RAL 7035 |
Supply includes | Complete unit ready to install, including folded filter |
Fan | Radial, EC motor |
Unimpeded air flow (with folded filter) | At 50 Hz: 976 m3/h |
Unimpeded air flow (without filter mats) | At 50 Hz: 1,069 m3/h |
Rated operating voltage | 220 V - 240 V, 1~, 50 Hz/60 Hz |
Rated power Pel | At 50 Hz: 129 W |
Rated current max. | At 50 Hz: 1 A |
Dimensions | Width: 400 mm |
Mounting cut-out | Width of opening: 258 mm |
Installation depth | 34.6 mm ( 1.36 ? ) |
Protection category IP to IEC 60 529 | IP 21 without filter mat |
Protection category NEMA | NEMA 12 |
Control interface | Yes |
Pre-fuse | Miniature circuit-breaker/fuse: 3 A |
Service life of fans (L10, 40 °C)) | At 50 Hz: 84,000 h |
Operating temperature range | -20 °C...55 °C ( -4 °F...131 °F ) |
Storage temperature range | -40 °C...70 °C ( -40 °F...158 °F ) |
Noise pressure level | At 50 Hz: 60 dB(A) |
Weight/packaging unit | 5.6 kg ( 12.3 lb. ) |

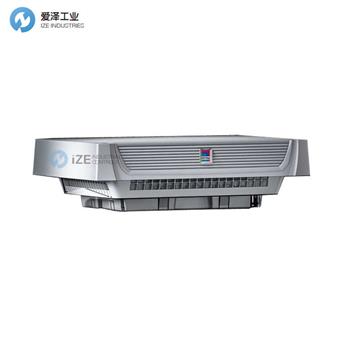

Product description | SK roof-mounted fan TopTherm, 1069/1069 m3/h, 230 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm, EC-Technology |
RITTAL風扇SK3140/500產品介紹
節能且強大的屋頂安裝風扇。風扇可通過控制接口啟動，并標配集成轉速信號輸出。此外，還支持監控風扇速度和功能。
新一代屋頂安裝風扇（EC 版本）是一個適合所有尺寸的系統：所有輸出類別僅需要一個安裝切口。壓力損失更小的空氣路徑確保了高水平的效率，而創新的夾緊附件支持 IP54 的高防護等級。風扇可以通過標準集成的測速信號輸出的控制接口激活，并支持對風扇速度和功能的監控。
Energy-efficient and powerful roof-mounted fans. The fan may be activated via the control interface with tacho signal output integrated as standard. Also, monitoring of the fan speed and function is supported.
The new generation of roof-mounted fans (EC version) is one system for all sizes: only one mounting cut-out is needed for all output categories. Air routing with minimal pressure losses ensures a high level of efficiency, while an innovative clamping attachment supports a high protection category of IP54. The fan may be activated via the control interface with tacho signal output integrated as standard, and monitoring of the fan speed and function is supported.
RITTAL風扇其他常用型號：
RITTAL SK 3140.510
RITTAL SK3140/500
RITTAL FANS NEW + ORIGINAL+ ONE YEAR WARRANTY
